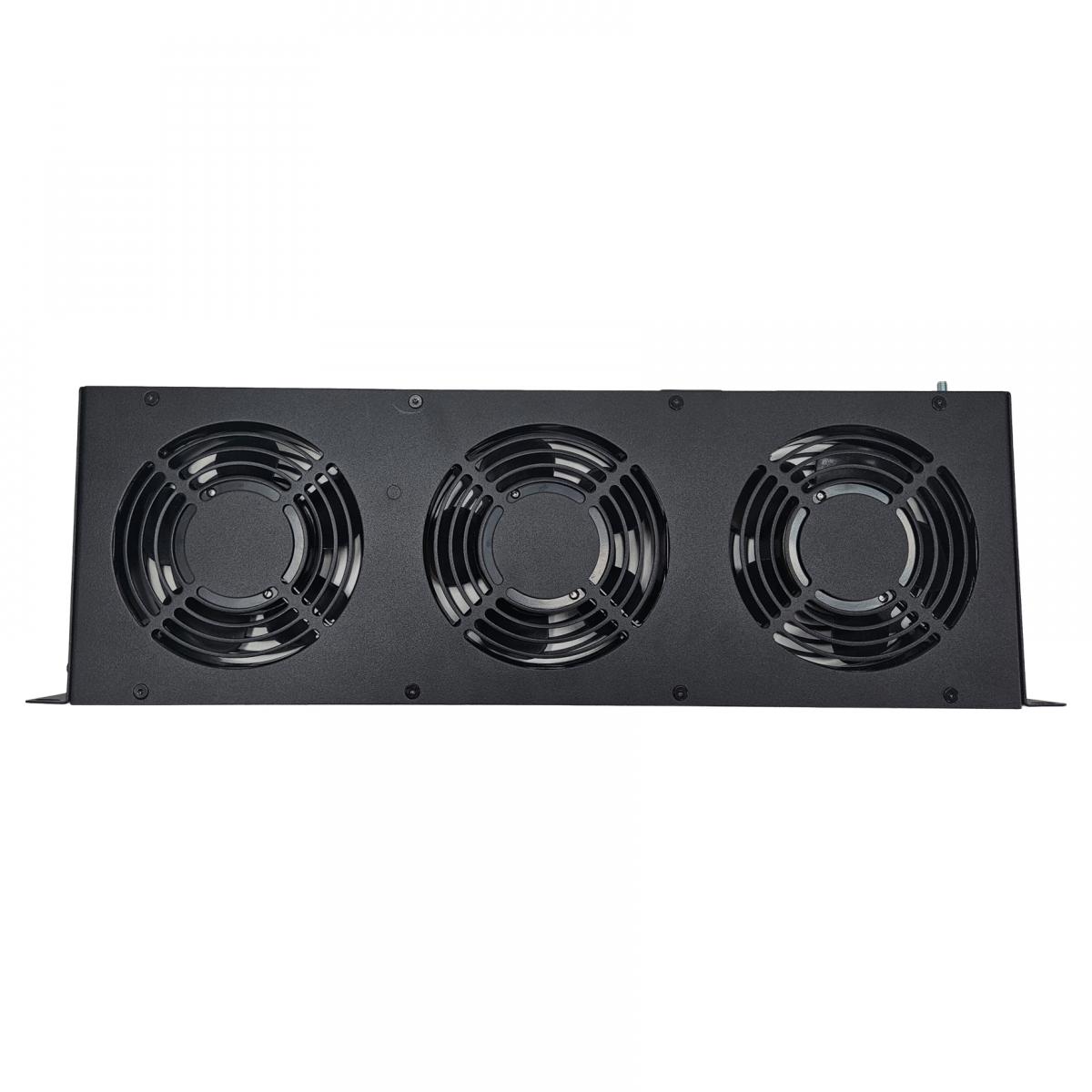

Takes 1U of rack space in your server cabinet
Dimensions are: 480mm (w) x 44.4mm (h) x 160mm (d)
|
Fan Specification |
Standard |
|
Model: |
DP201A |
|
Rated Voltage: |
220-240 VAC 50/60
Hz |
|
Operating Voltage
Range: |
185-245 VAC |
|
Starting Voltage: |
185 VAC (25 deg. C
POWER ON/OFF) |
|
Rated Speed: |
2750/3050 RPM ± 10% |
|
Air Delivery: |
87/107 CFM |
|
Static Pressure: |
0.26/0.32 Inch-H²O |
|
Rated Current: |
0.125/0.11 AMP |
|
Rated Power: |
20/19 WATTS |
|
Noise Level: |
45/50 dB(A) |
|
Direction of
Rotation: |
Counter-clockwise
viewed from the front of fan blade |
|
Operating
Temperature: |
-10 tp +70 deg. C |
|
Storage
Temperature: |
-40 to +70 deg. C |
|
Bearing System: |
Precision ball
bearing system |
|
Weight: |
550g |
|
Safety: |
TUV/UL/CUR/VDE/CE
Approvals |
