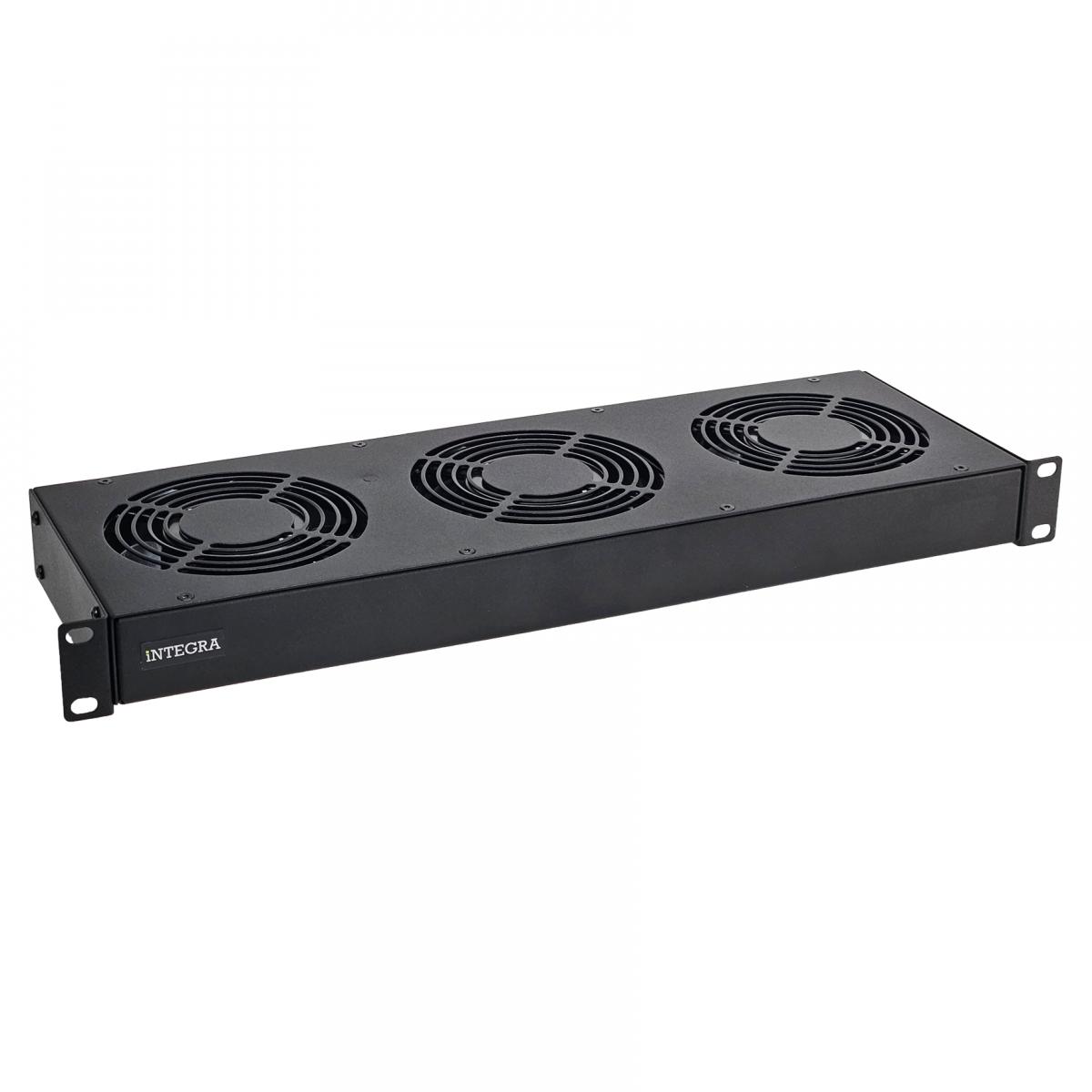

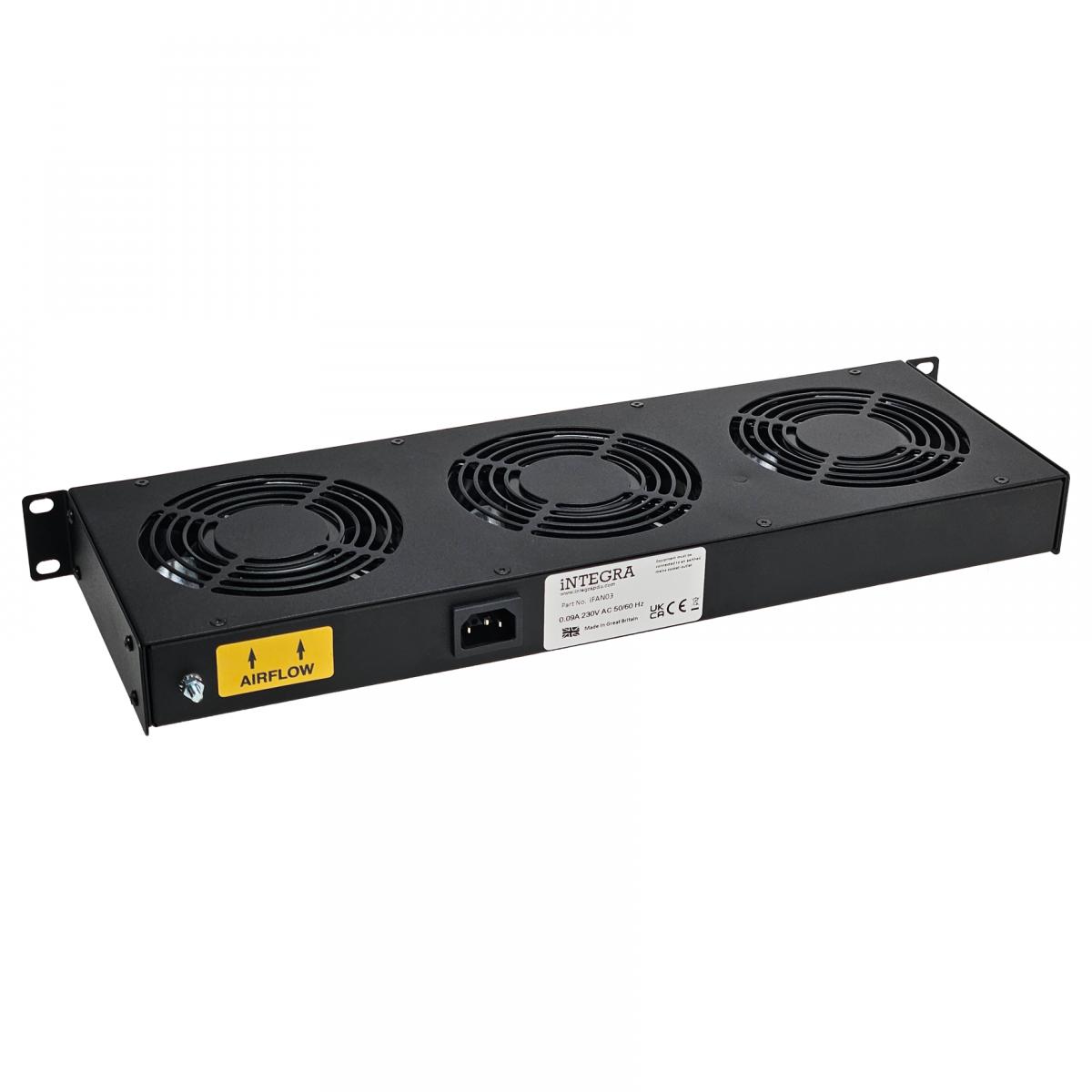

Takes 1U of rack space in your server cabinet
Dimensions are: 480mm (w) x 44.4mm (h) x 160mm (d)
|
Fan Specification |
Low Noise |
|
Model: |
DP203A |
|
Rated Voltage: |
220-240 VAC 50/60
Hz |
|
Operating Voltage
Range: |
150-250 VAC |
|
Starting Voltage: |
150 VAC (25 deg. C
POWER ON/OFF) |
|
Rated Speed: |
1650/1600 RPM ± 10% |
|
Air Delivery: |
50/49 CFM |
|
Static Pressure: |
0.08/0.07 Inch-H²0 |
|
Rated Current: |
0.04/0.04 AMP |
|
Rated Power: |
8/8 WATTS |
|
Noise Level: |
26/25 dB(A) |
|
Direction of
Rotation: |
Clockwise viewed
from front of fan blade |
|
Operating
Temperature: |
-10 to +70 deg. C |
|
Storage
Temperature: |
-40 to +70 deg. C |
|
Bearing System: |
Precision ball
bearing system |
|
Weight: |
550g |
|
Safety: |
TUV/CE Approvals |
