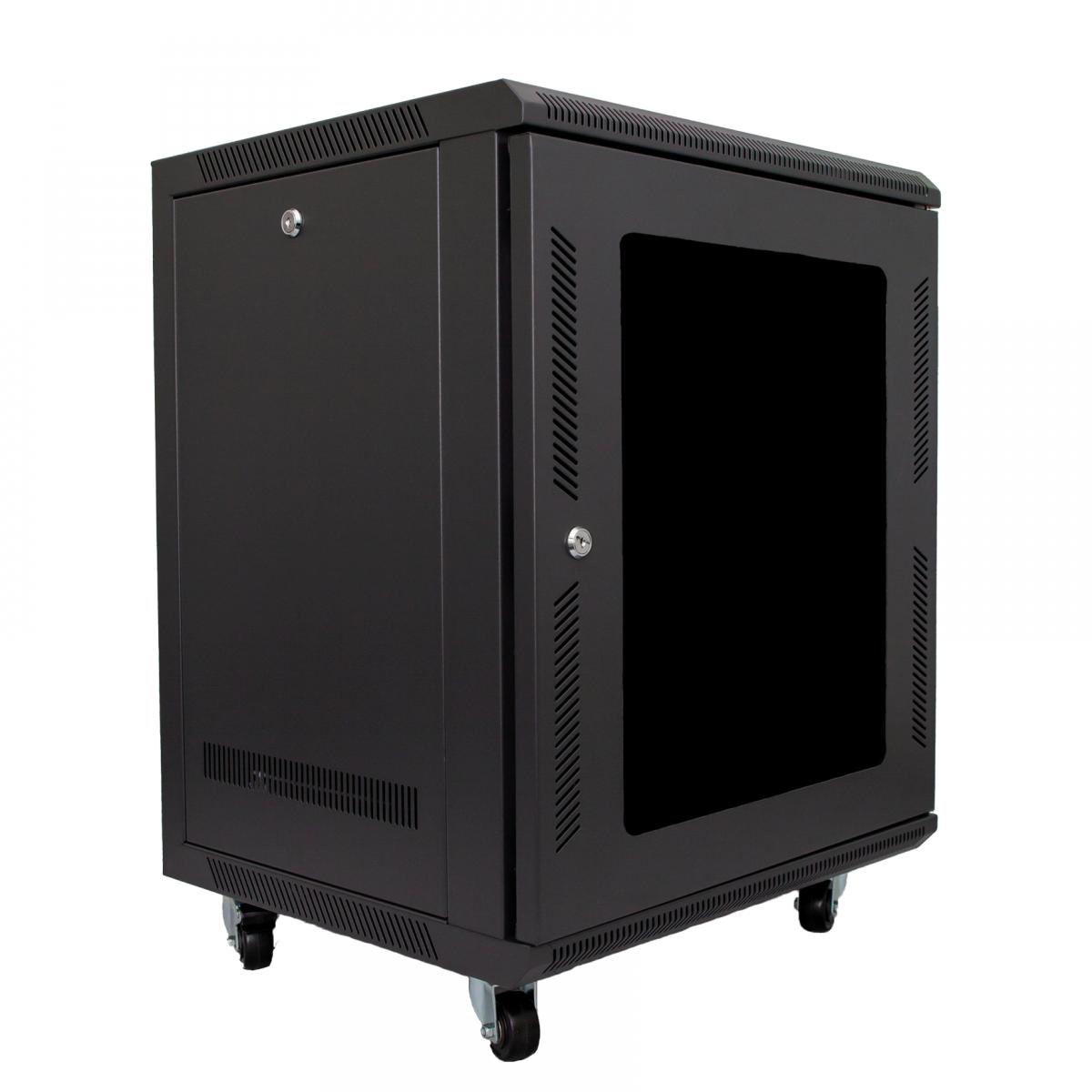

9U & 12U Floor Mounted 19" Data Cabinets

Part: D909645

Perfect Cost Effective Solution To House Your Data & Networking Kit. Ideal For AV, CCTV & Office Network Applications.

  • Available In 3 Popular Sizes - 9U 450mm, 9U 600mm & 12U 600mm

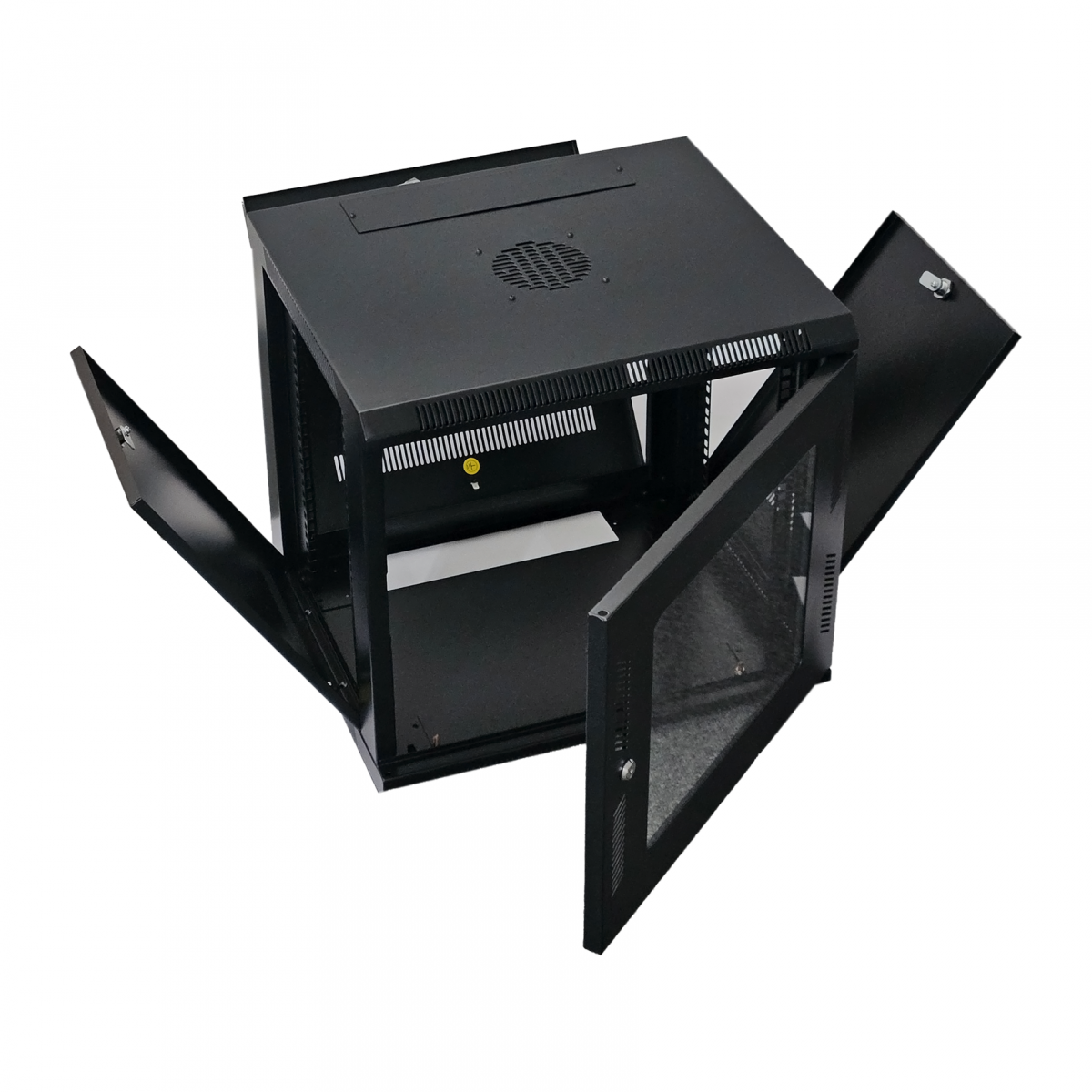

  • Lockable Removable Front Door, Side Doors & Back Door For Ease Of Installation

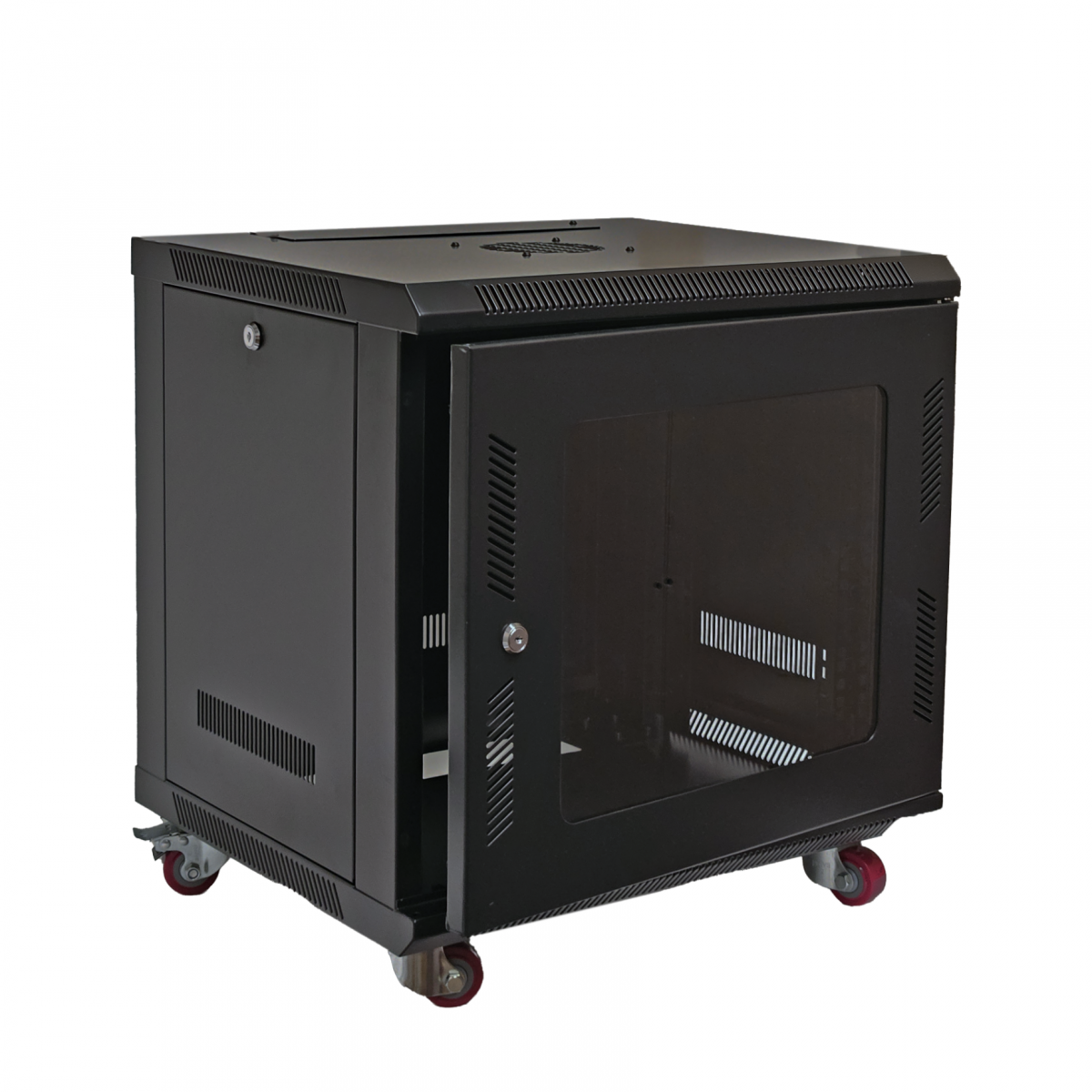

  • Floor Mounted Solution - Castors Available Separately Here
  • Strong, Robust Cabinet - Manufactured from 1.2mm Thick Steel

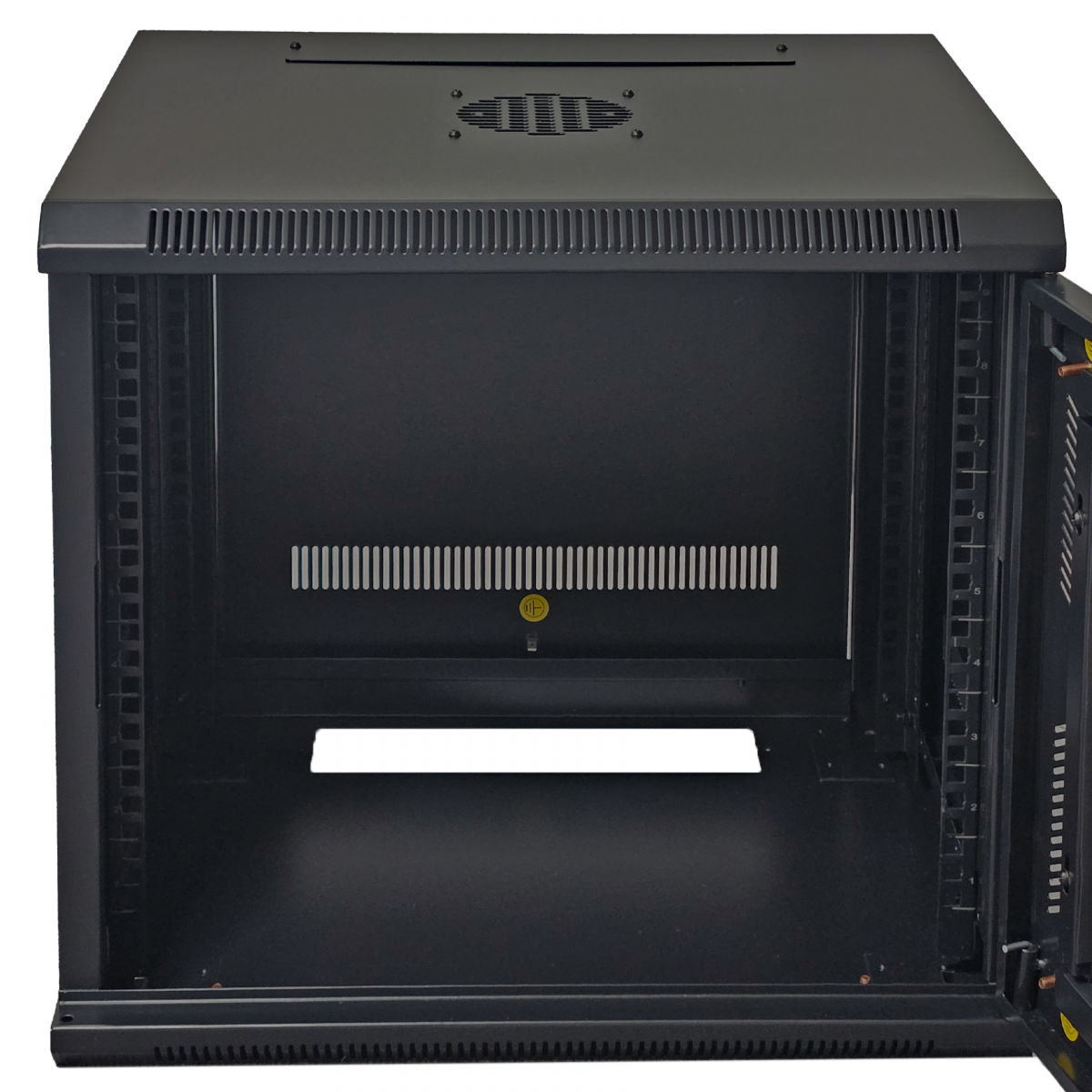

  • 19" Rack Mount With 1.8mm Thick Steel Mounting Posts
  • Earthing Terminals Present On Floor & Front And Rear Doors

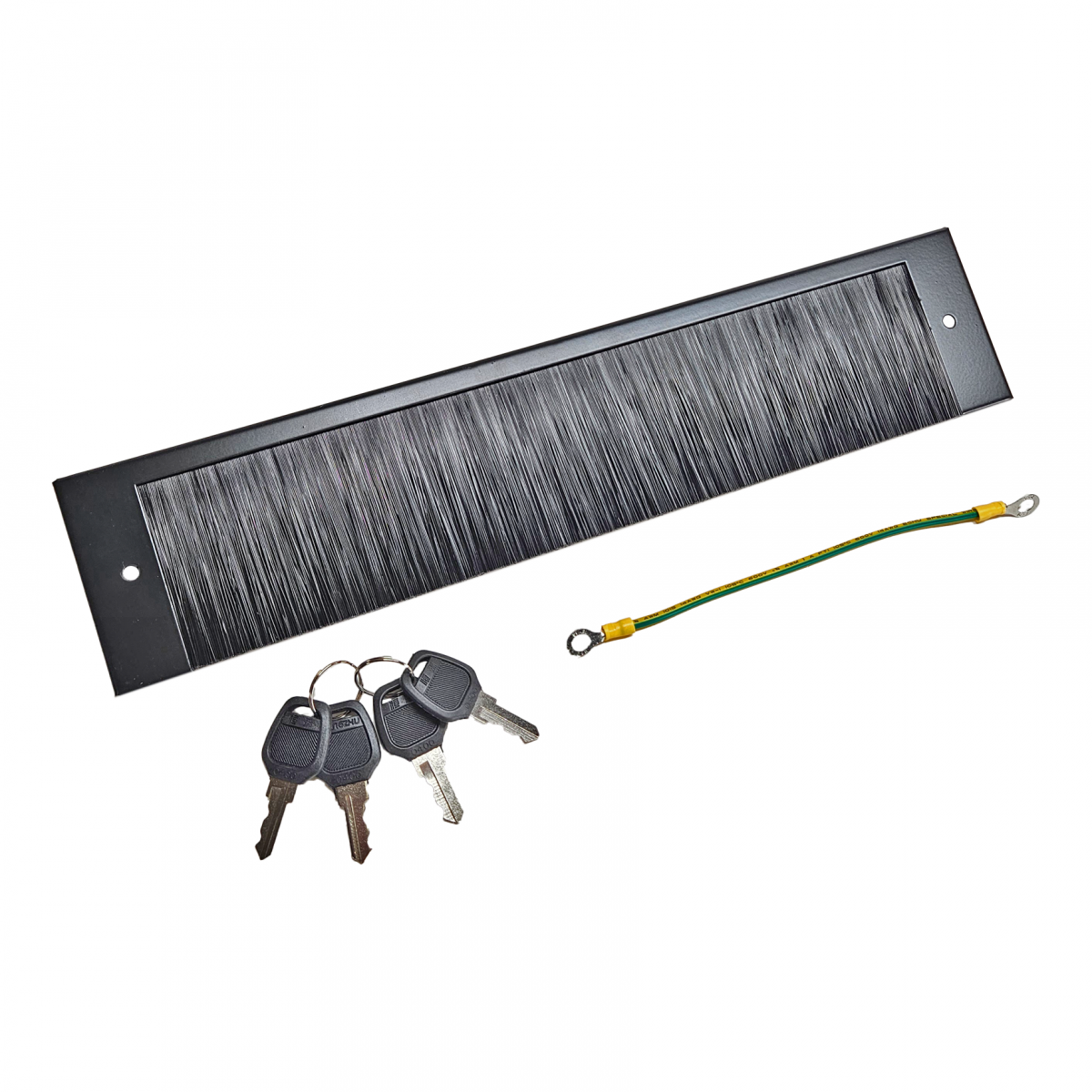

  • Cable Entry Points Top & Bottom Of Cabinet, Blanking Plate & Brush Strip Supplied

Please enter a valid email address

  • from £136.94
  • Incl. VAT: £164.33

0 reviews / Write a review

You can puchase the heavy duty swivelling castors here


Dimensions

Part CodeU HeightWidthDepthExternal Height (Excluding Castors)
D9096459U530mm450mm499mm
D9096609U530mm600mm499mm
D91266012U530mm600mm632mm

Please note castors will add approximately 70mm to the external height

Dimensions

Part CodeU HeightWidthDepthExternal Height (Excluding Castors)
D9096459U530mm450mm499mm
D9096609U530mm600mm499mm
D91266012U530mm600mm632mm

Please note Castors will add approximately 70mm to the external height


Rack Mount SizeStandard 19" Rack Mount
Mounting Post Thickness1.8mm Thick Steel
Other Cabinet Thickness1-1.2mm Thick Steel
Earthing PointsTerminals on Floor and Front and Rear Doors
PaintTexture Power Coat Black
Weight Limit60Kg
RatingIP20
StandardEN 61587-1-2017
