In-line Remote Monitored 3 Phase Power Meter For PDUs

Part: V01BB70

Add Remote Monitoring to Your Current 3 Phase Power PDUs & Racks

  • Remote Three Phase Monitoring - With Accuracy Better Than 1%
  • Measure RMS Volts, RMS Amps, Kilowatts, Frequency, PF, Peak Volts, Peak Amps, kVA, kWh, Internal Temperature
  • Overall Energy Measurement Of Up To 125A
  • Set Alerts For Critical Metrics - Send Alerts Via Email or SNMP Traps
  • Local Display For On Site Readings
  • Access Control Ports As standard - For Electronic Door Handles, Card Readers, Pin Pads
  • Environmental Options Available - Connect Up To 8x Temperature Sensors, 1x Combined Temp/Humidity Sensor
  • Modbus Ports For Daisy Chaining Up to 32 Units From A Single IP Address

Please enter a valid email address

  • from £933.00
  • Incl. VAT: £1,119.60

0 reviews / Write a review

This intelligent meter provides in depth, real time power usage monitoring across the connected units with an easy to use web interface and the ability to set alerts on crucial metrics. The in-line 3 phase meter also features environmental and control ports to allow easy deployment of temperature/humidity sensors as well as control of locking door entry systems.


Our In Line 3 Phase Remote Power Meter can be monitored via the HTML interface or through free of charge PDU software. Alternatively it can be integrated into third party software using the available MiB file.

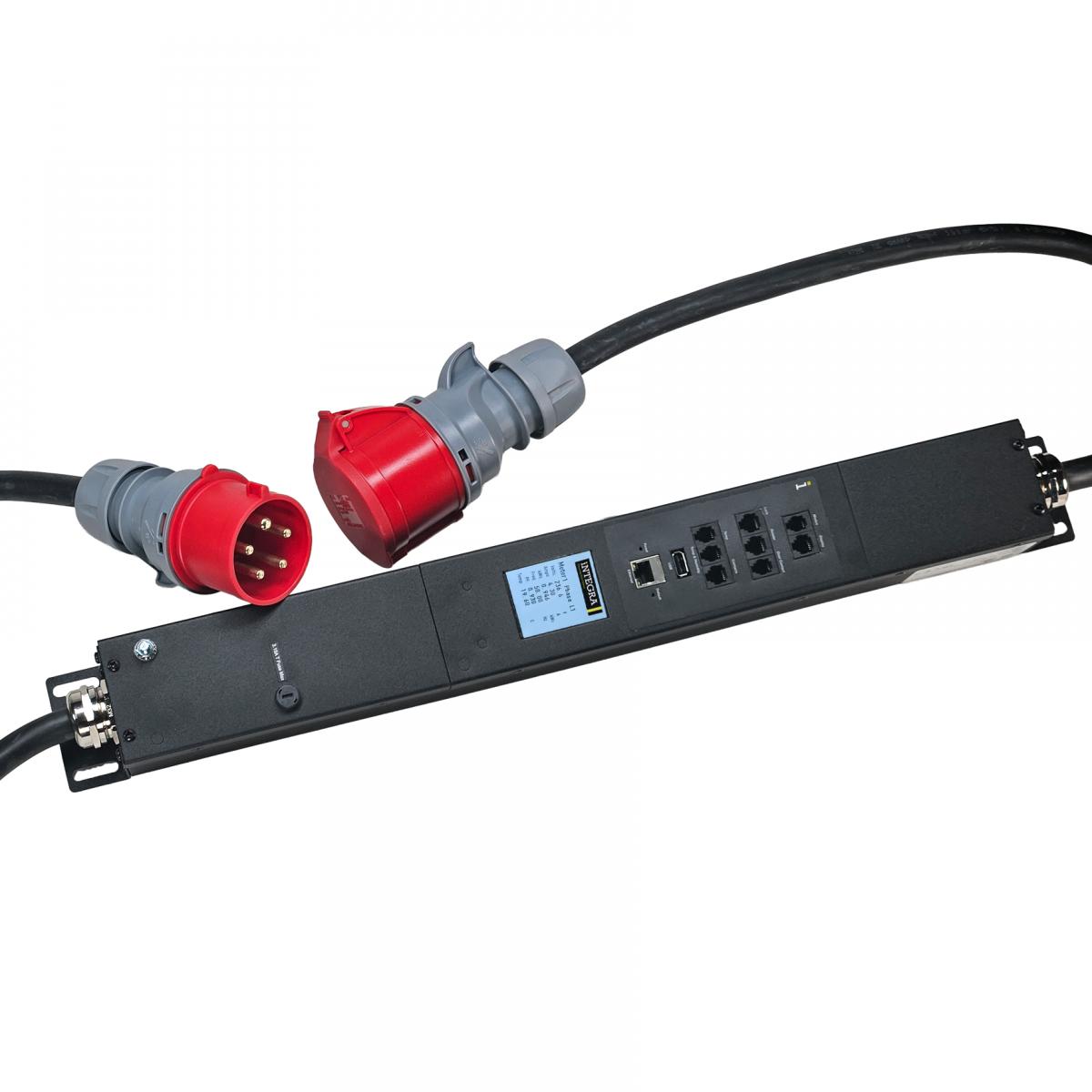

The standard unit comes with 2m input cable to 5 pin 32A 3 Phase Plug and 2m output cable to 5 pin 32A 3 Phase Socket but other options are available upon request.
