ATS - Automatic Transfer Switch - 19 Inch Rack Mount

Part: E004022

Brand: Socomec
Availability: In Stock

Provides redundant power supply to single-corded IT equipment.
Powered by two independent sources.
Automatic and manual transfer Fast transfer time without source overlapping (ITI curve compliant).
19" rack mount for easy installation.
Flexible remote management and real-time monitoring.

Current

from £520.00
Incl. VAT: £624.00

0 reviews / Write a review

Front view

1. Control and monitoring panel
2. Setup connetion ports
3. Dry contacts port
4. Slot for RS485 or SNMP board

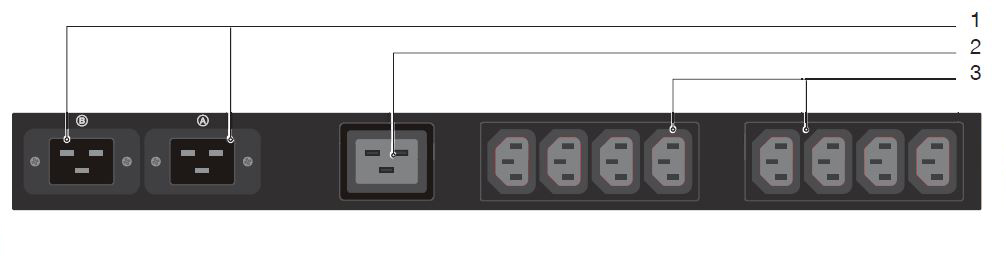

Connections

1. Sources input sockets (2x IEC 320-C20)
2. 16 A output socket (IEC 320-C19)
3. 10 A output sockets (2x 4x IEC 320-C13)

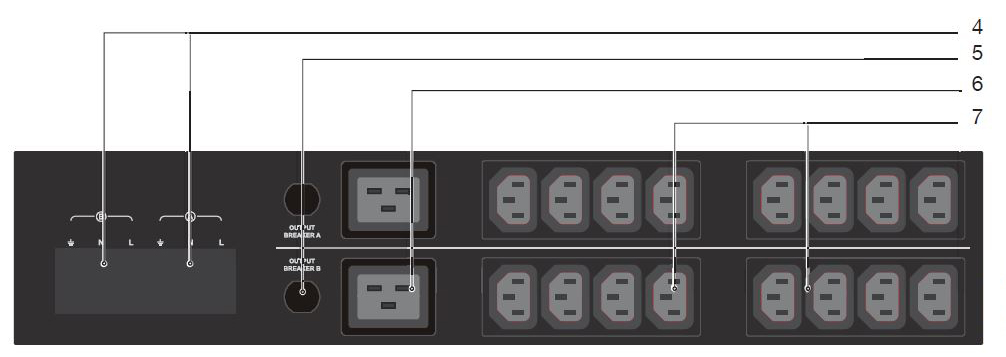

4. Sources input terminals
5. Output protections
6. 16 A output sockets (2x IEC 320-C19)
7. 10 A output sockets (2x 8x IEC 320-C13)

STATYS XS
Model	16 A	32 A

INPUT / OUTPUT
Rated current	16 A (configurable 10 A to 16 A)	32 A (configurable 20 A to 32 A)
Rated voltage	200 / 208 / 220 / 230 / 240 V
Voltage tolerance	± 10% (configurable)
Rated frequency	50/60 Hz
Frequency tolerance	± 10% (configurable)
Typical transfer time	ITIC curve compliant
Admitted overload	125% for 1 minutes, 150% for 30 seconds

CONNECTIONS
Input	2x IEC C20 (16 A)	Terminals 1x 6P (10 mm²)
Output	1x IEC C19 (16 A), 8x IEC C13 (10 A)	2x IEC C19 (16 A), 16x IEC C13 (10 A)

COMMUNICATION AND USER INTERFACES
Display	LCD display
Standard communication features	slot for optional communication board, 5 dry contacts (voltage-free, configurable), setup connection port for configuration tool
Communication options	SNMP card, RS485 card

ENVIRONMENT
Operating ambient temperature	up to +40 °C
Relative humidity	5% to 90% without condensation
Acoustic level at 1 m (ISO 3746)	< 25 dBA

MECHANICAL SPECIFICATIONS
Dimensions W x D x H	440 (19”) x 285 x 44 mm (1U)	440 (19”) x 360 x 88 mm (2U)
Weight	4 kg	6 kg

STANDARDS
Directives	2014/35/UE, 2014/30/UE
Standards	IEC60950-1, CEI/EN 62310-2
Environmental	WEEE, ROHS
Product declaration	CE
