Draytek Vigor 912C Ceiling / Wall Mount Mesh Wi-Fi Dual Band Access Point

Technical Specification (UK Hardware Spec.)

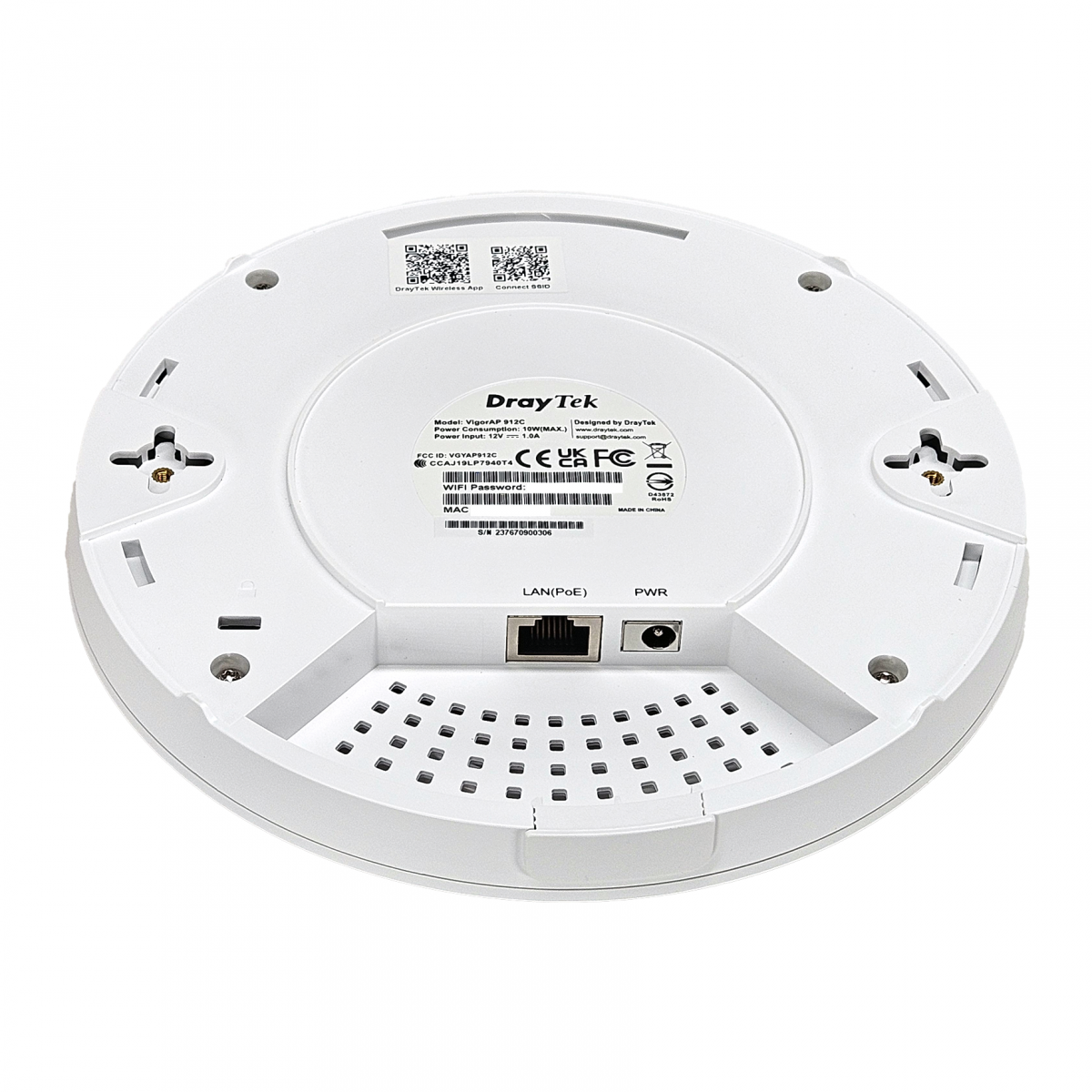

Physical Interfaces/Controls

1 x Gigabit Ethernet LAN Port, RJ45 (accepts PoE Power)

Factory Reset Button (recessed)

DC Power Socket

1 x Security Lock

Wireless Performance

AC1200 Class Wireless Access Point

5GHz: PHY Rate 866Mb/s

2.4GHz: PHY Rate 300Mb/s

Wireless LAN Compatibility

IEEE 802.11ac (Wave 1 & 2) / a / b / g / n

Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation

Up to 128 clients per radio

2.4GHz Wireless LAN Features

802.11b, 802.11g, 802.11n

20 / 40 MHz

Up to 300Mb/s total Wi-Fi throughput (PHY Rate):

802.11b/g/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)

5Ghz Wireless LAN Features

802.11ac (Wave 1 & 2) / 802.11n / 802.11a

20 / 40 / 80 MHz

Extended 5Ghz Band - Channels 36-48, 52-64, 100-140

DFS/TPC Support

Multi-User MIMO - New!

Up to 866Mb/s total Wi-Fi throughput (PHY Rate):

802.11a/n: 300Mb/s PHY rate (150Mb/s per Spatial Stream)

802.11ac: 866Mb/s PHY rate (433Mb/s per Spatial Stream)

Security Features

Wireless Encryption:

WPA2-Personal (WPA2/PSK)

WPA2-802.1x

WPA3-Personal - New!

Mixed (WPA2+WPA3)/PSK

also supports WPA/WEP (Not recommended)

Built in 802.1x server (PEAP / EAP-TLS)

802.1x RADIUS Proxy (PEAP / EAP-TLS)

PMK Caching & Pre-authentication

Wireless Client Isolation

Control Isolation of 2.4GHz and 5GHz bands

Hidden SSIDs (Selectable)

WPS - WiFi Protected Setup

MAC Address Filtering (ACL) - Up to 256 entries

Mobile Device Management

EAPOL Key Retry - New! - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK

Wireless Control Features

Wireless Client Status List in WUI

Client Limit per radio

Client Limit per SSID - New!

Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)

MAC Cloning

Built-in DHCP Server & DHCP Relay

Trusted DHCP Server IP for WLAN - New! - Only specifed DHCP server IP can assign IP addresses to WLAN clients

802.1q VLAN

Station Control - Time limit wireless connectivity per Station (e.g. 1 hour) & set allowed Reconnection time (e.g. 1 day)

Device Object/Group Control - New! - Schedule Internet access for individual devices or groups

Wireless Performance Optimisation

Airtime Fairness

Band Steering

AP-Assisted Client Mobility

WMM (Wireless MultiMedia)

Bandwidth Management (Per Station / Per SSID)

Diagnostic Features

System Log

Speed Test

Traffic Graph

Wireless LAN Statistics

Interference Monitor - Built-in Site Surveyor

Management

Web Interface (HTTP/HTTPS)

DHCP Client

TR-069 Control (For VigorACS or other TR-069 platform)

CLI (Command Line Interface) - Telnet

Firmware upgrade by TR-069/HTTP

Central AP Management (from compatible DrayTek router/controller)

SNMP v2, v2c, v3

Management VLAN

Configuration File Export (with password) & Import

Wireless Auto On/Off - New! - Disable Wireless if VigorAP is unable to ping specified host

Power Requirements

Maximum Power Consumption: 10 Watt

DC 12V via external 100-240v AC/DC PSU

802.3af PoE via LAN port. Requires PoE injector or a PoE switch such as the VigorSwitch P2121

Environmental & Physical

Operating Temperature : 0 ° C to 45 ° C

Operating Humidity: 10% to 90% (Non-condensing)

Physical Dimensions: 162mm (wide/diameter) x 42mm (high)

Weight : 0.3kg

Ceiling or Wall Mountable (requires rear cable entry)

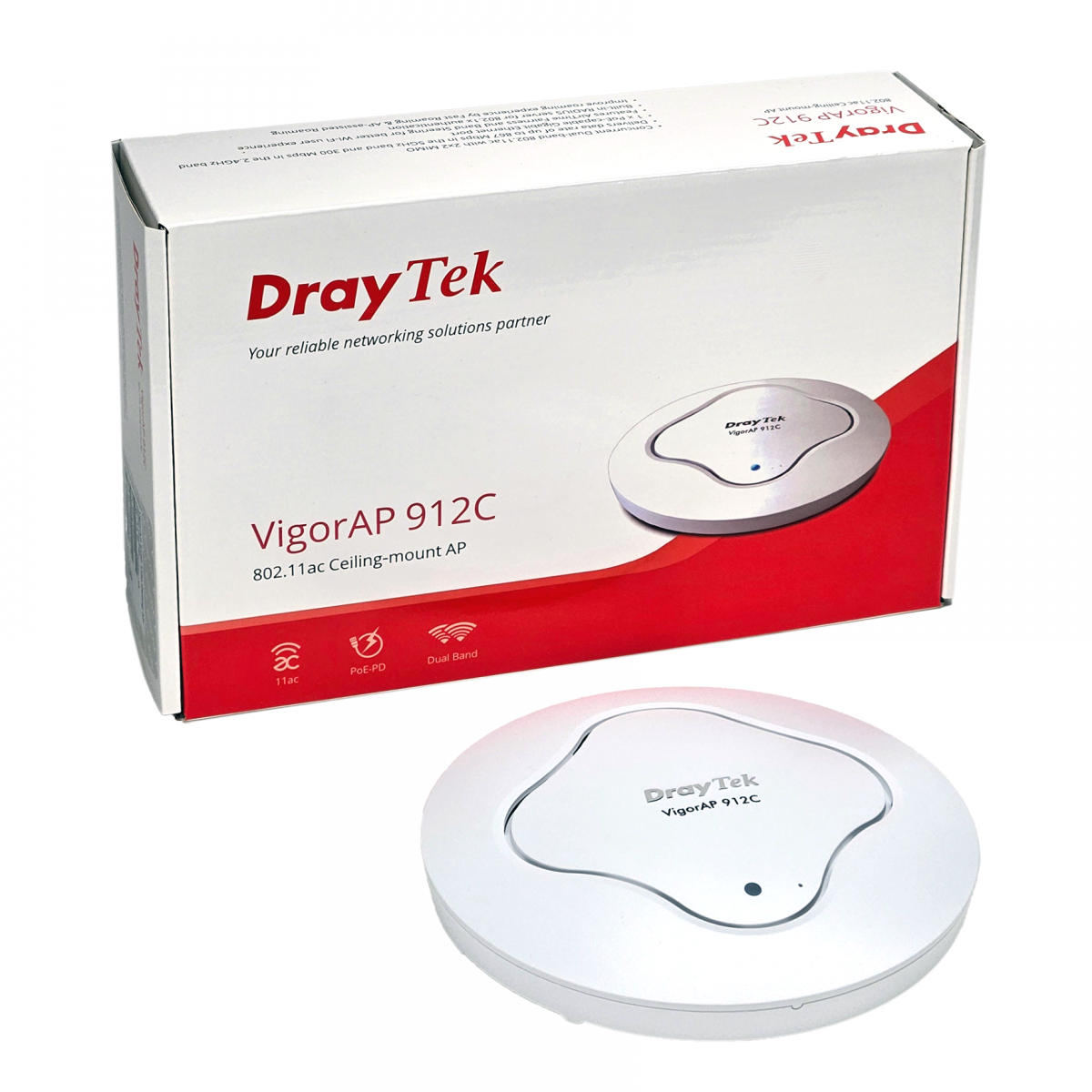

Pack Contents

VigorAP 912C wireless access point

Ceiling Mount Bracket

T-Rail Brackets & Screws

Quick Start Guide

Ethernet Cable

DC 12V PSU

ROHS & CE Compliant

Warranty

Two (2) Years RTB

Optional VigorCare Enhanced Warranty Available

VigorCare A3 3 Year Subscription: VCARE-A3

VigorCare A5 5 Year Subscription: VCARE-A5
