ICON Desktop Charging Stations complement your desk beautifully with its flexible range of keystone modules. Whether it is Cat5e, Cat6, Cat6a, HDMI, USB A, Fibre or Audio Jack, the ICON allows customised loadouts for each office desk. This stylish desk power unit is available in black or white and features separate master switches for each socket, with blue indictor lights to show power 'On'. As with the rest of our Office and Desk Power Products, the ICON conforms to BS6396 and features an individual 3.15A re-settable thermal fuse per UK socket. Each ICON also feature smart USB C & A charging ports to better suit the demands of today's portable devices.
The ICON uses our Starter Cable, Splitter & Link Cable Ecosystem and is also compatible with our other office power products such as In Line RCBO units and Surge Protection modules. Each unit comes with 500mm fly lead to a GST18 Male connector. ICONs mount to your desk with the supplied rear desk clamp.
The smart charging USB C and A charging ports means the device sends the appropriate power intelligently to each device according to the following protocols:
USB-C PD, 2V/5A, 5V/3A & 9V/2A, complies with BC1.2, PD2.0, QC3.0 and Apple protocols
USB-A & USB-C QC 3.0, 2V/5A, 5V/3A & 9V/2A and complies with BC1.2 and Apple protocols
Desk
Mounted Office Power
ICON
Desktop Power & Charging Data Module
The ICON desk power
& data units provide a stylish and flexible offering for your workstation.
· BS6396
compliant 3.15A resettable fuses
· Individually
switched UK sockets
· USB
C & A QC 3.0 18W max charging ports

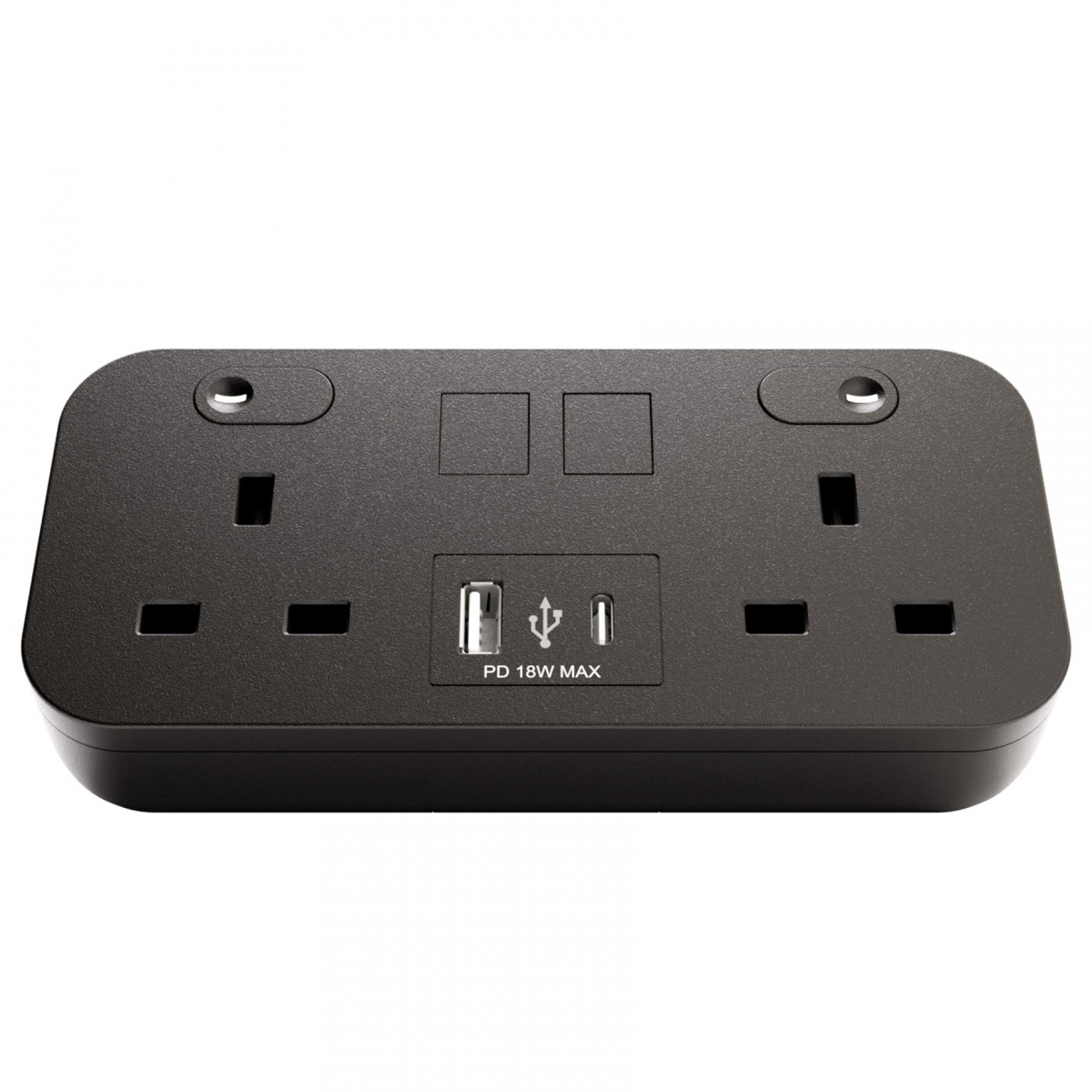

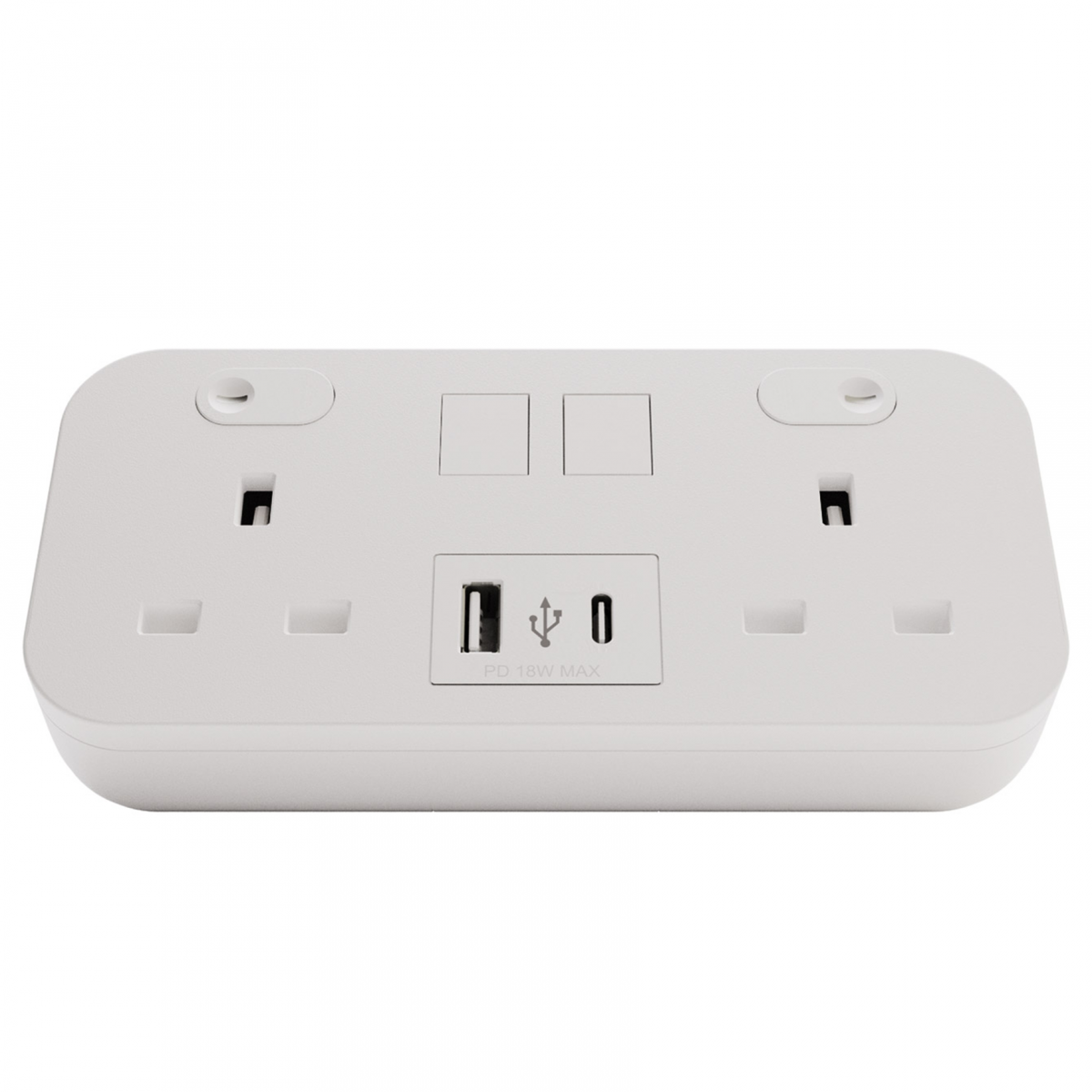

· Universal

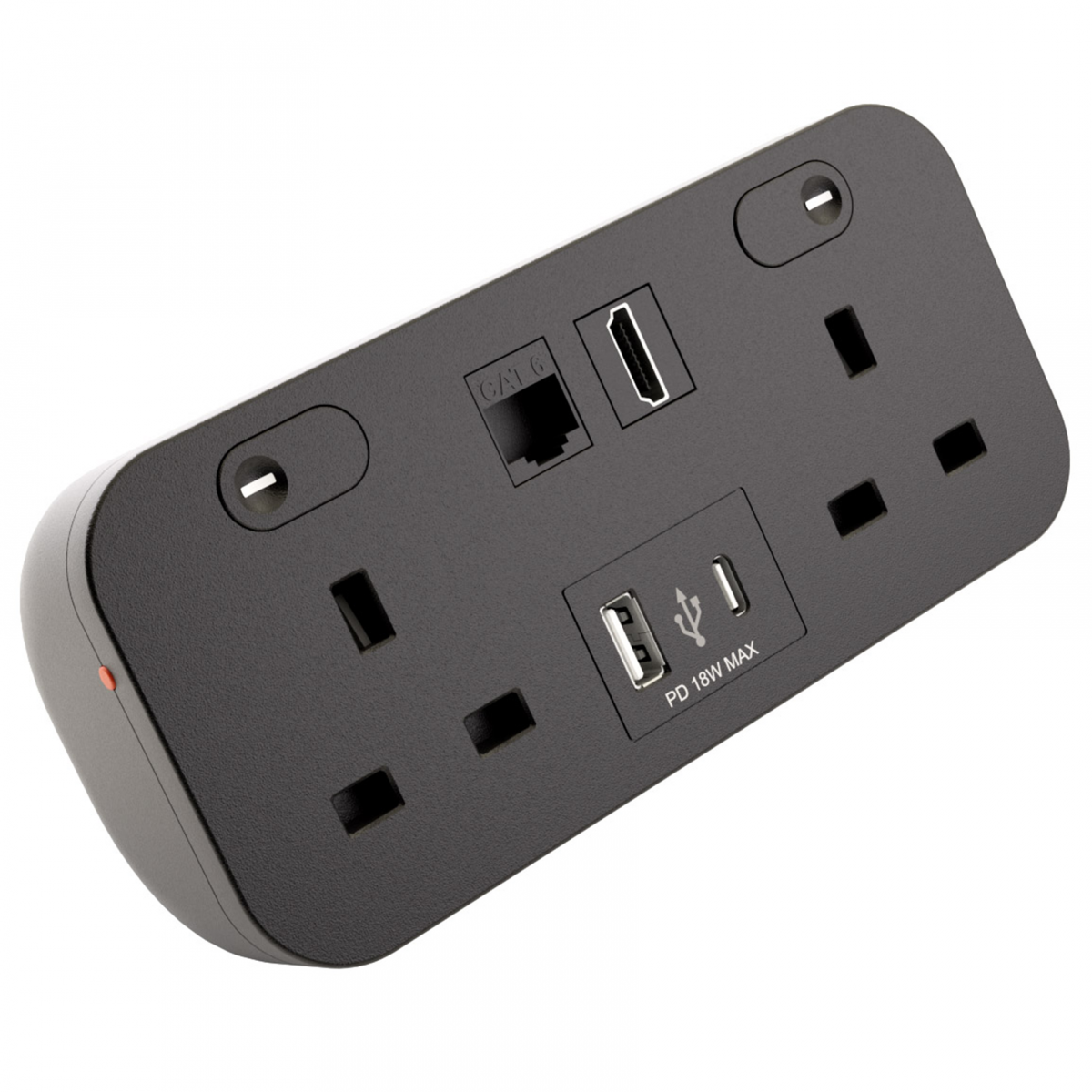

keystone ports to suit different setups
· Cat6,
RJ45, HDMI options available
· Available
in black or white
· Supplied
with sturdy desk clamp
Product
Overview
ICON Desktop Charging
Stations complement your desk beautifully with its flexible range of keystone
modules.
Whether it is Cat5e,
Cat6, Cat6a, HDMI, USB A, fibre or audio jack, the ICON allows customised

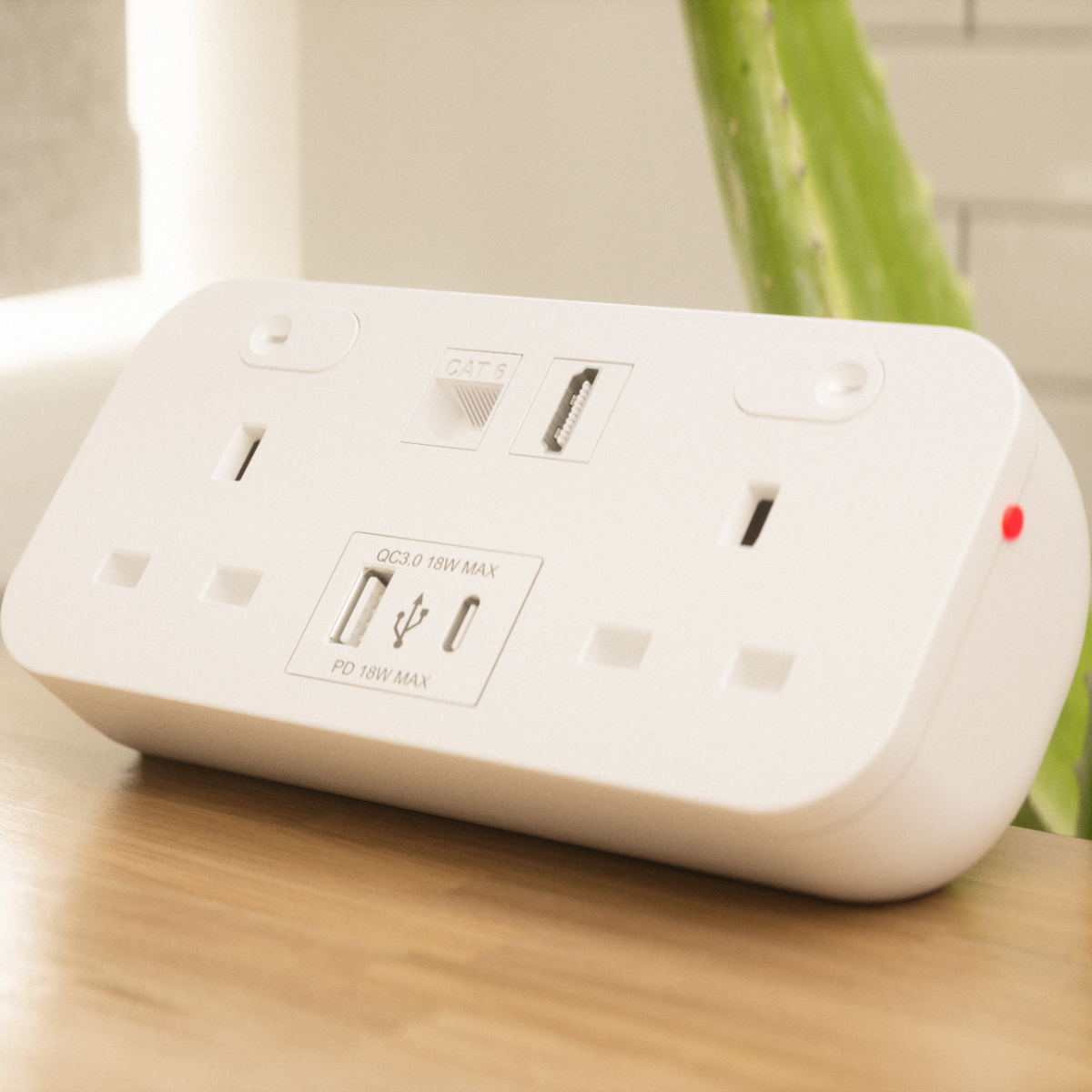

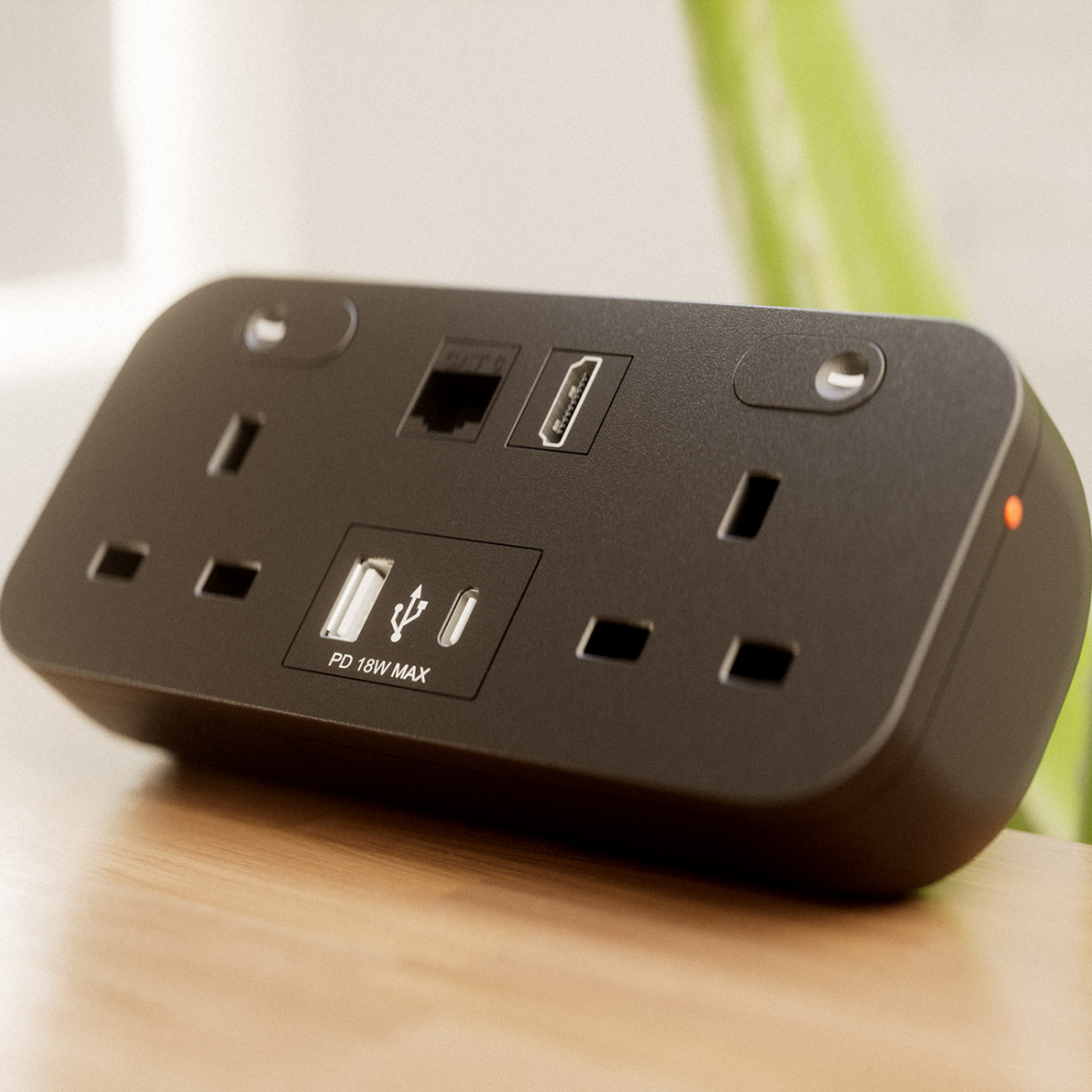

loadouts for each office desk. This stylish desk power unit is available in
black or white and features separate master switches for each socket, with blue
indictor lights to show power 'On'.
As with the rest of our
Office and Desk Power Products, the ICON conforms to BS6396 and features an
individual 3.15A re-settable thermal fuse per UK socket. Each ICON also feature
smart USB C & A charging ports to better suit the demands of today's portable
devices.
Desk
Mounting & Power Connectivity
The ICON uses
our starter cable & link cable ecosystem and is
also compatible with our other office power products such as under desk
power units, RCBO and surge protection modules.
Each unit comes with
500mm fly lead to a GST18 male connector. These connect to a choice of length

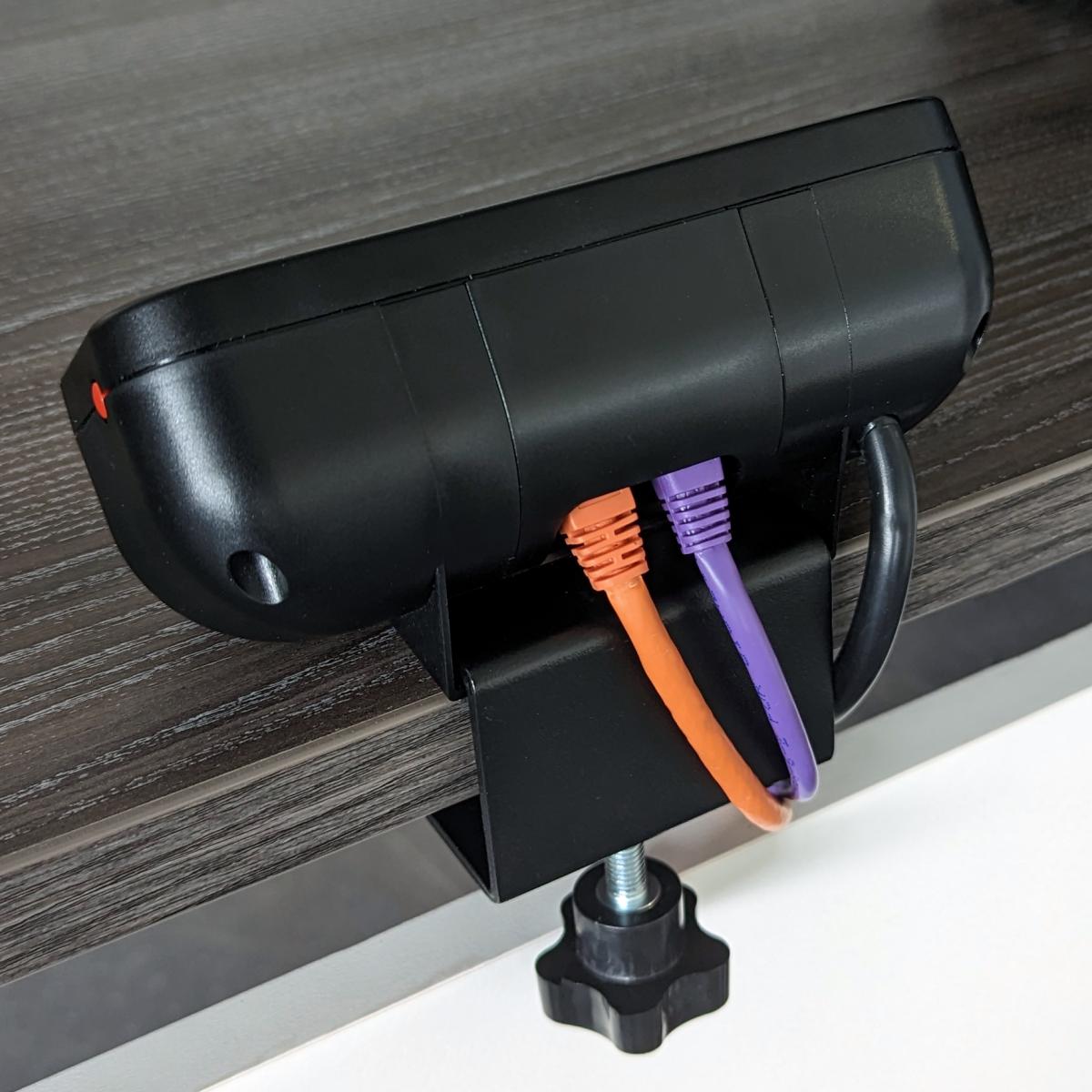

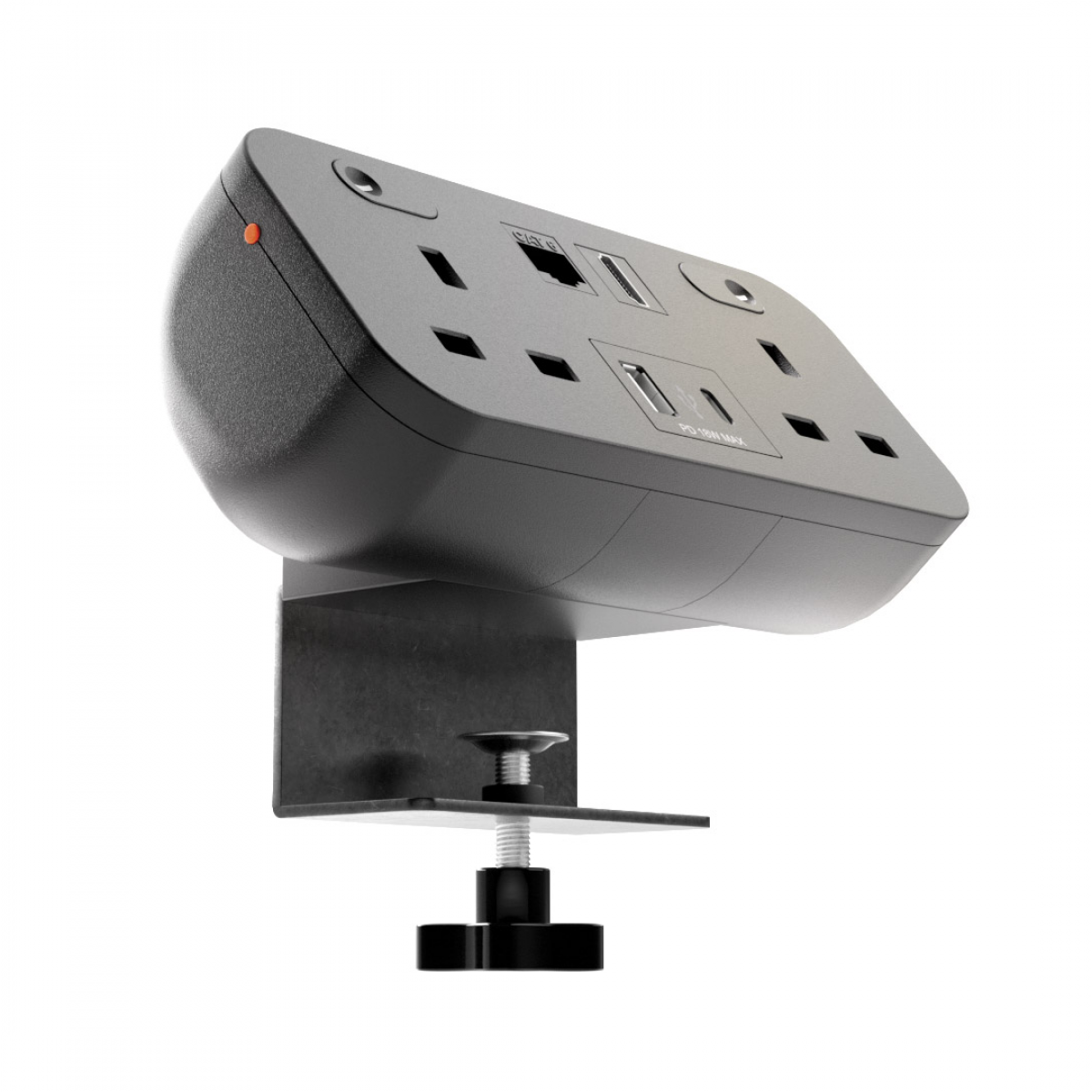

starter cables to connect to the UK mains. ICONs mount to your desk with the
supplied rugged rear desk clamp.
USB
Power Delivery
The smart charging USB C and A charging ports
means the device sends the appropriate power intelligently to each device
according to the following protocols:
USB-C PD, 2V/5A, 5V/3A & 9V/2A, complies
with BC1.2, PD2.0, QC3.0 and Apple protocols
USB-A & USB-C QC 3.0, 2V/5A, 5V/3A &
9V/2A and complies with BC1.2 and Apple protocols
Technical Information
Dimensions: 150mm x 75mm x 80mm
Switch: Rocker switch with blue neon ‘on’ indicator
Power: 250V max load 13A
Fuse: 2x 3.15A resettable thermal fuses
Socket: 2x BS1363 sockets complies with fuses BS6396
USB: USB C & USB A 18W smart charger
Input: 500mm lead to male 3 pole (GST18) connector
Accreditations: BS5733, UKCA, CE marked
Flammability: UL94V-0, IP20
Clamp: Toolless, 70mm wide, desk thickness 20mm to 35mm
