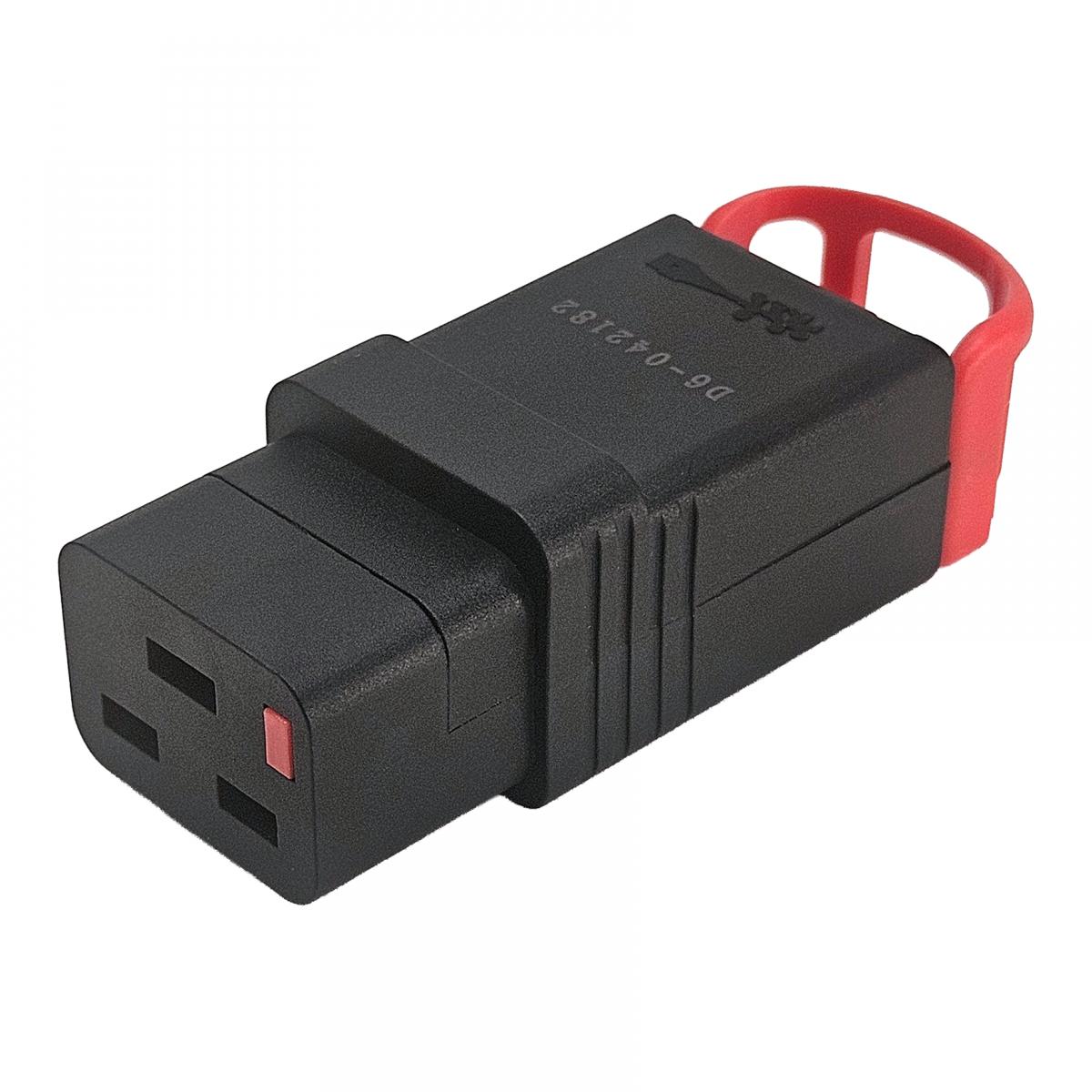

IEC Lock IEC C19 Locking Socket Re-Wireable Connector

General Information:

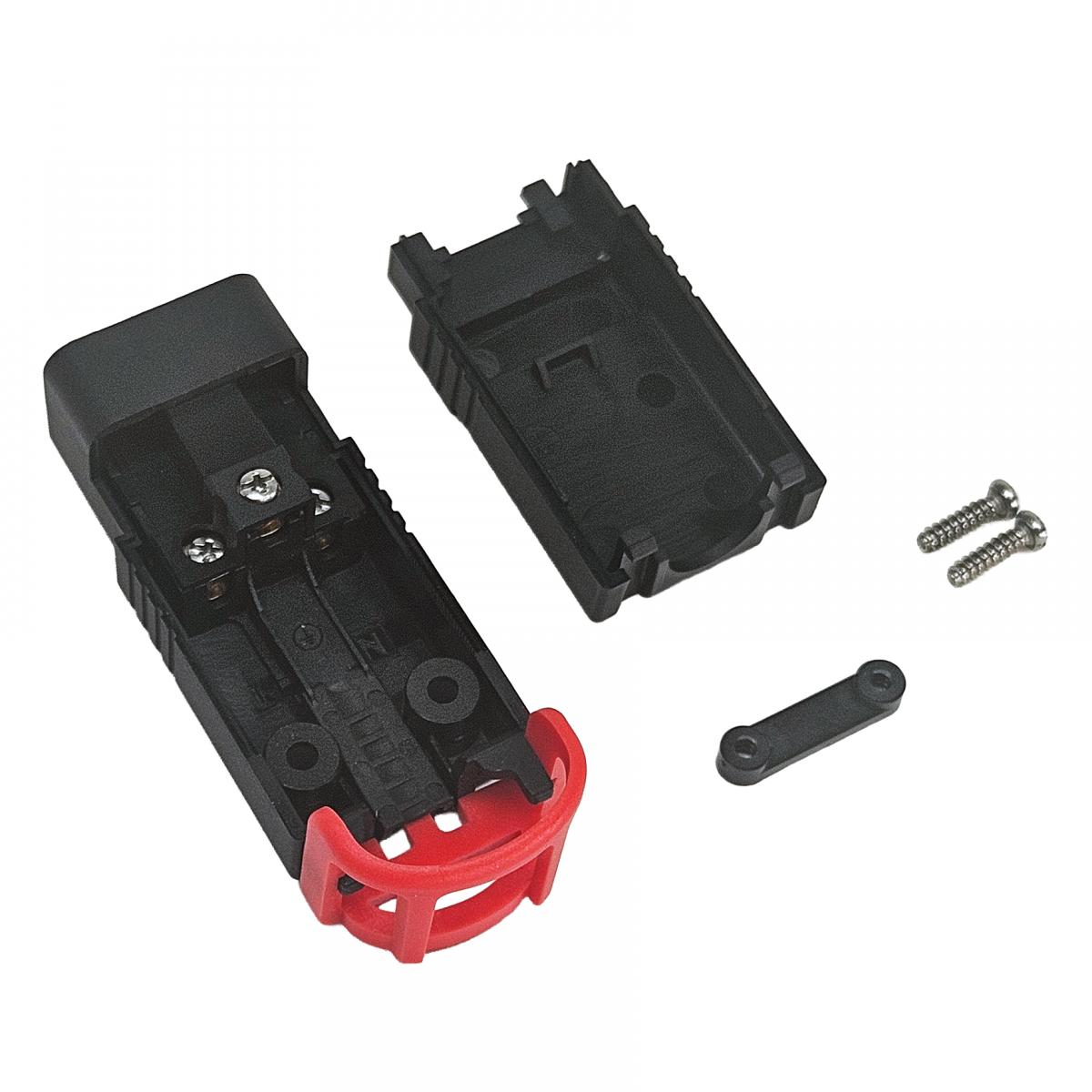

Rewireable

Fits any standard C20 inlet

Anti-Vibrate

Integral plug retention feature

Easy pull handle

Slotted and Cross head housing screws

Appliance inlet suitable for cold conditions

Materials:

Outer Body & Chassis: Nylon (PA66) LSZH (RAL 9004 Signal Black)

Cable Restraint: Nylon (PA66) (LSZH)

Housing Screws & Cable Restraint Screws: Steel, Nickel Plated

Lock Pivot Lever: Polycarbonate (LSZH)

Terminal Block & Sliding Terminal: Brass

Terminal Screws: Steel, Yellow Passivated

Spring: Spring Steel

Locking Blade: Spring Steel Zinc Plated

Red Handle: Polycarbonate LSZH (RAL 3020 Traffic Light Red)

Rating:

16A Max / 250V~ (Europe & Australia)

20A Max / 250V~ (USA)

Terminal Capacity:

3 Core 2.5mm² Maximum, ø2.5mm Terminal Diameter

Maximum Cable Diameter:

11.3mm

Torque Value Terminal Screws:

0.4Nm, Strain Relief Clamping Screws; 0.3Nm

Dielectric Strength:

1.5 kV Max

Withdrawal Force:

>100N

Ambient Operating Temperature:

25°C

Flammability Rating:

Equivalent to UL94V-0

Protection Class:

Suitable for appliances with protection Class I according to IEC EN 61140
