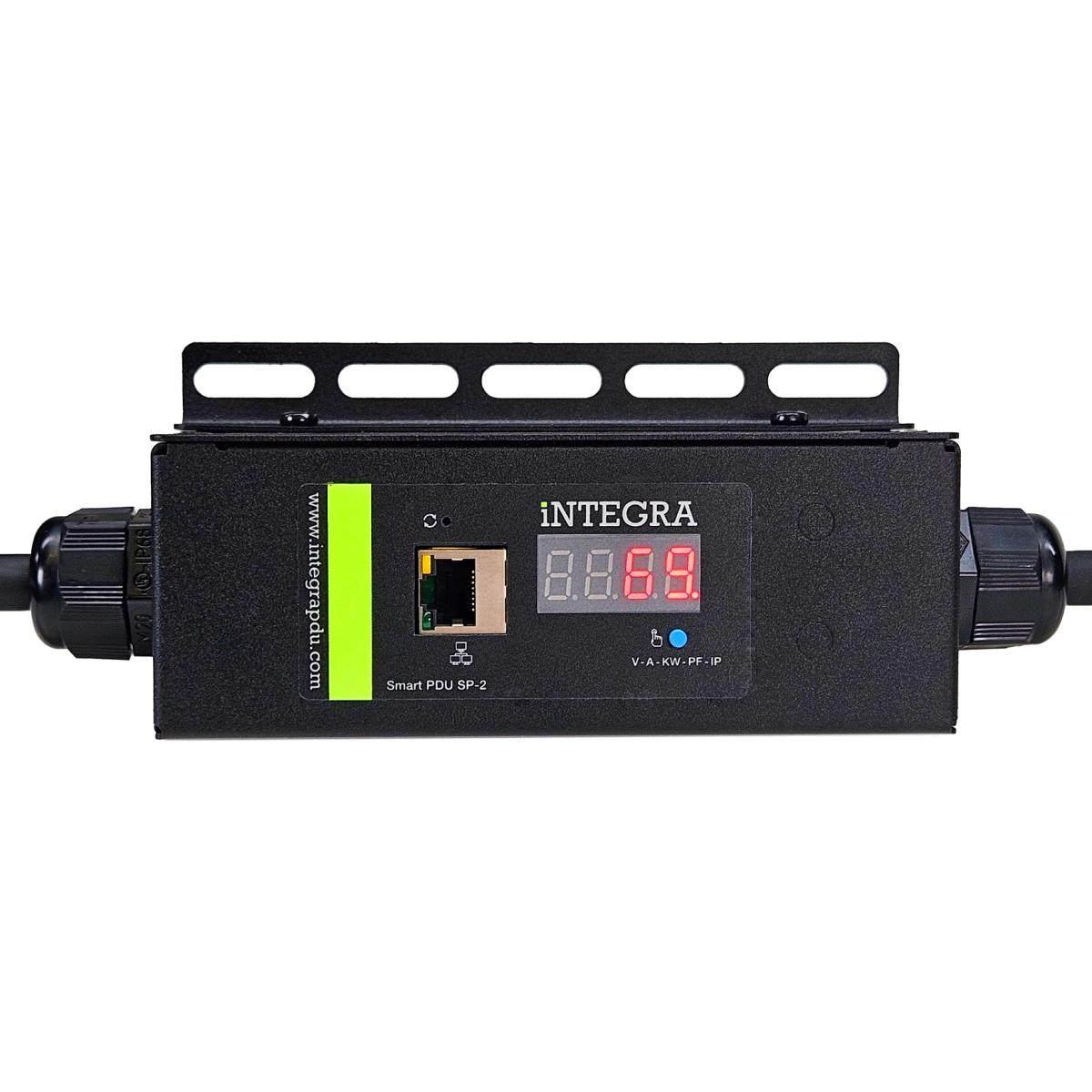

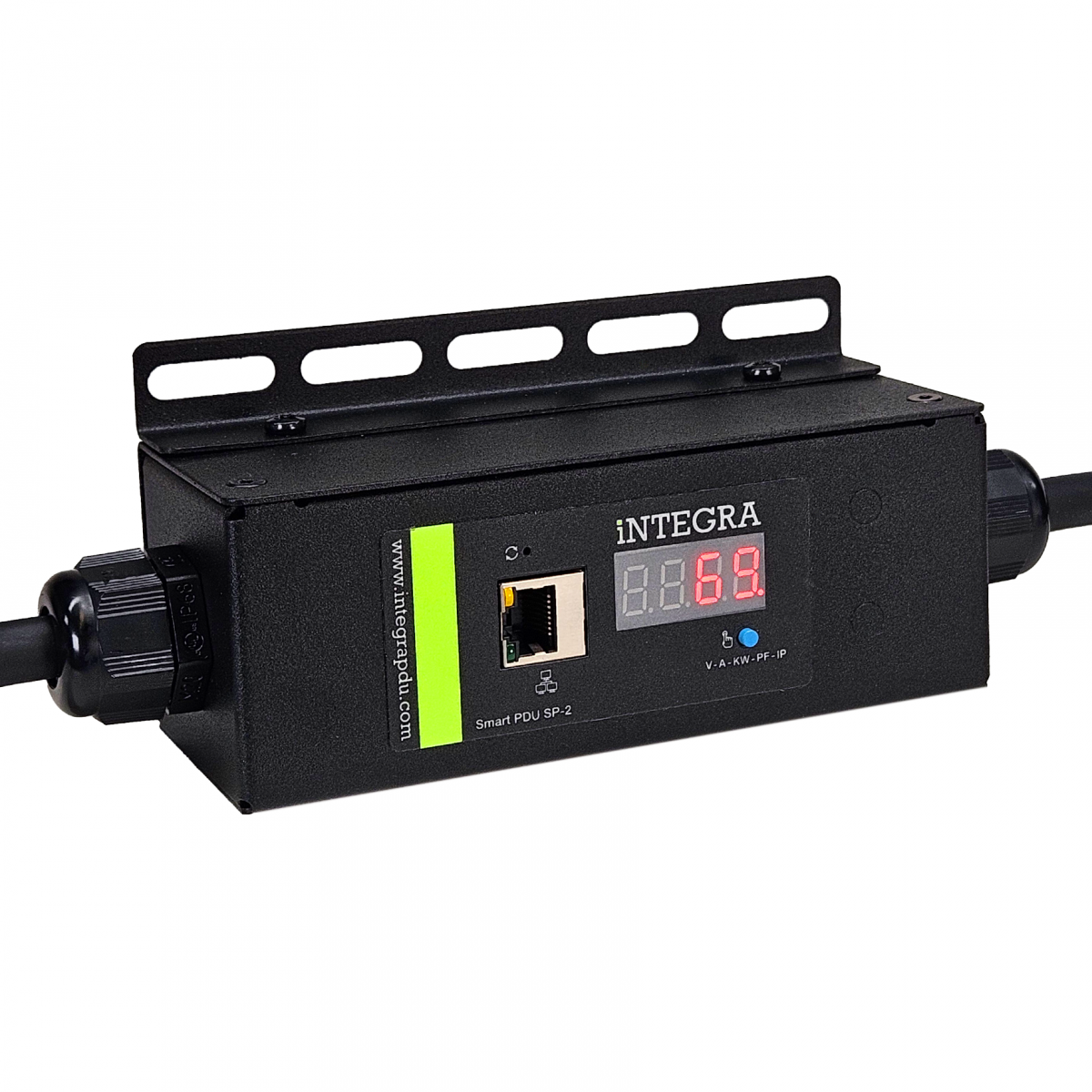

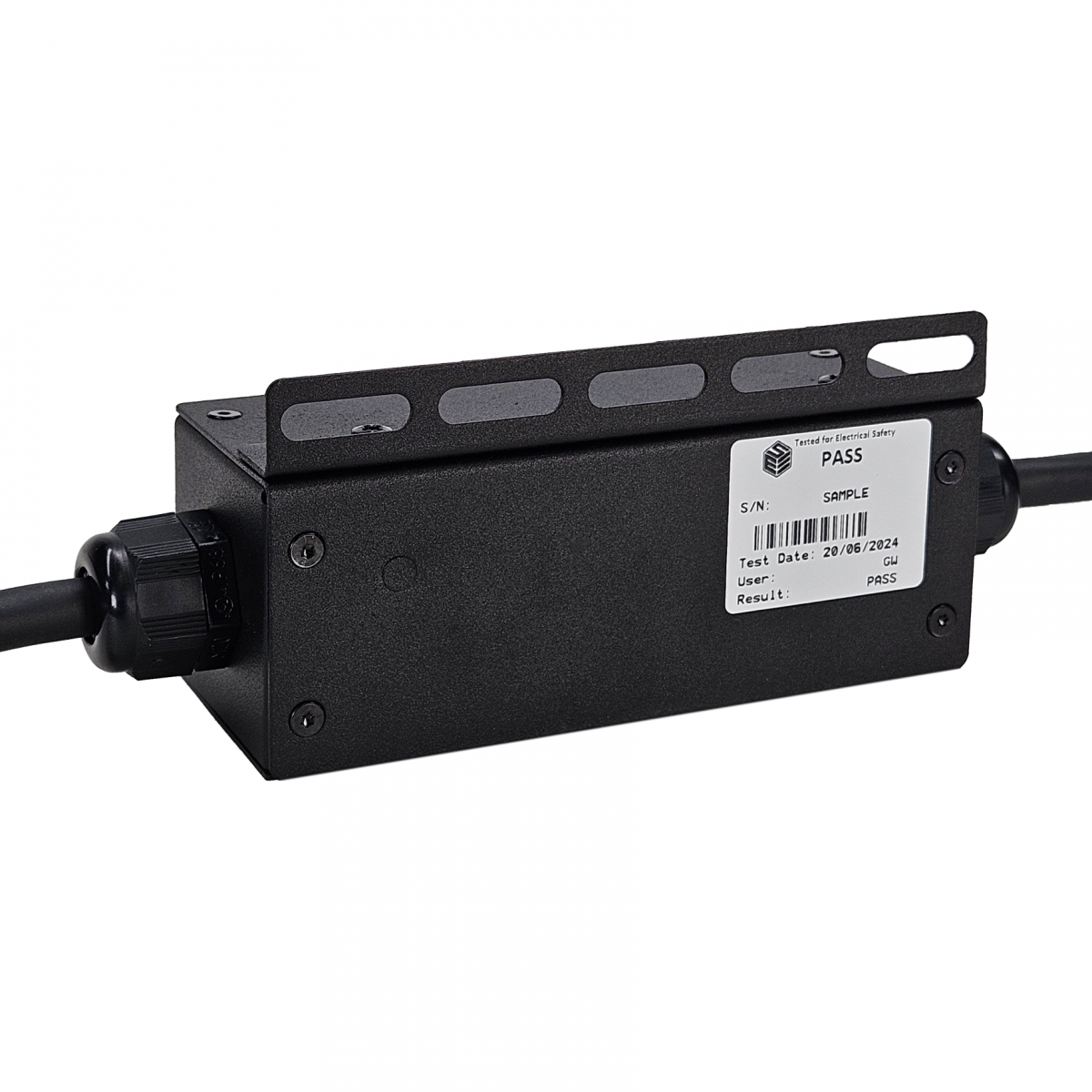

In-line Remote Monitored Power Meter For PDUs

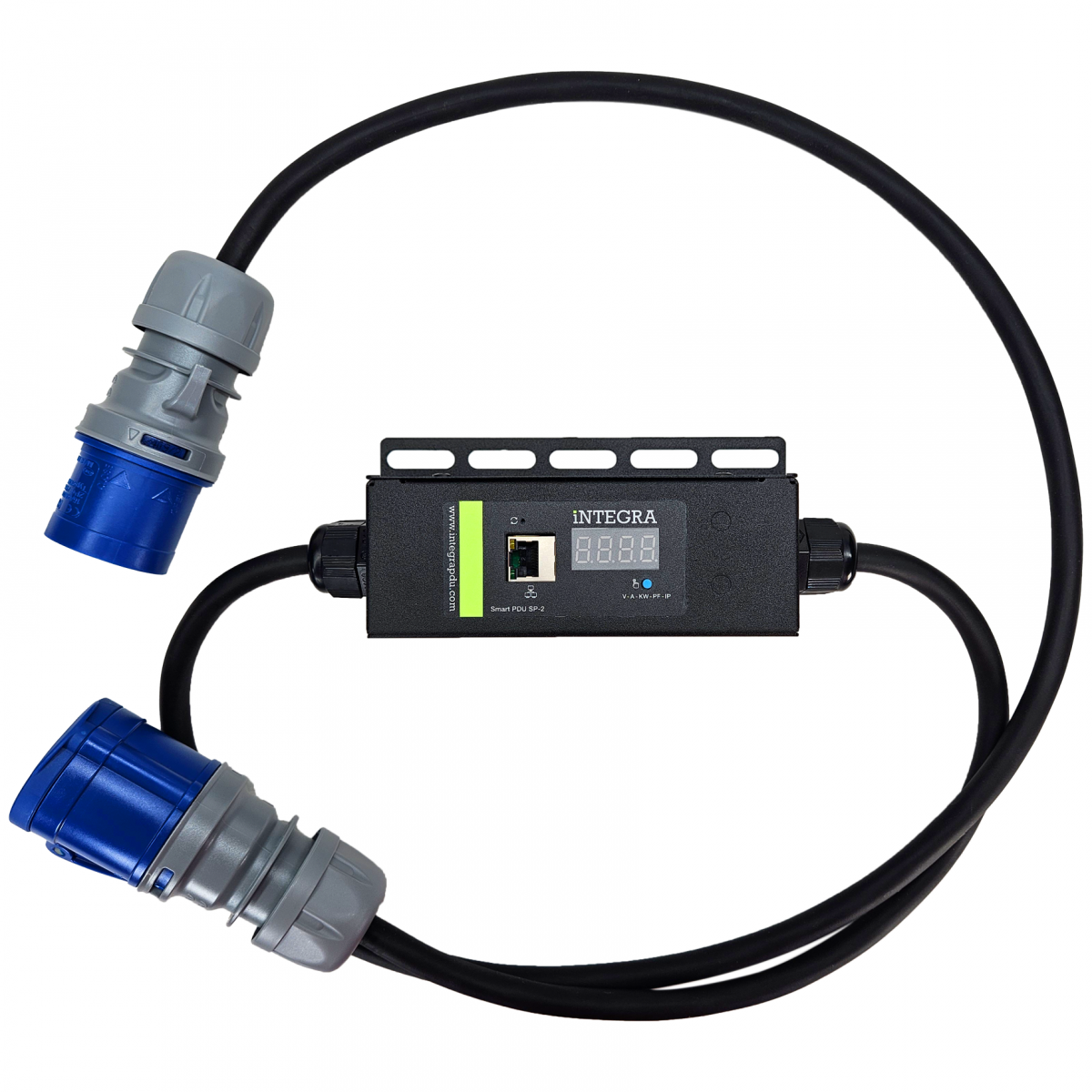

Available in 16A or 32A versions with a choice of length input lead.

16A on 2.5mm2 H07RN-F cord

32A on 4.0mm2 H07RN-F cord

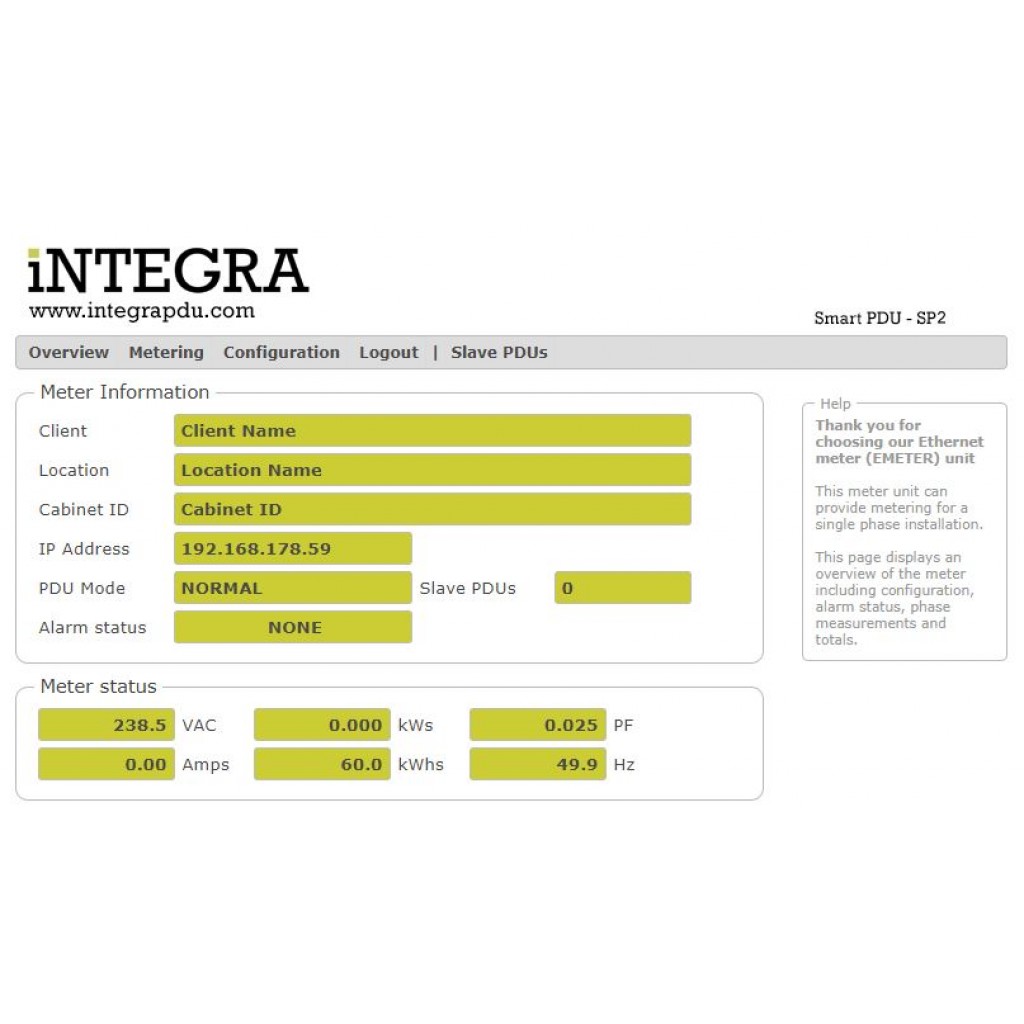

Easy to use HTML interface with ability to set SNMP and Email alerts for all critical parameters.

Energy Metrics

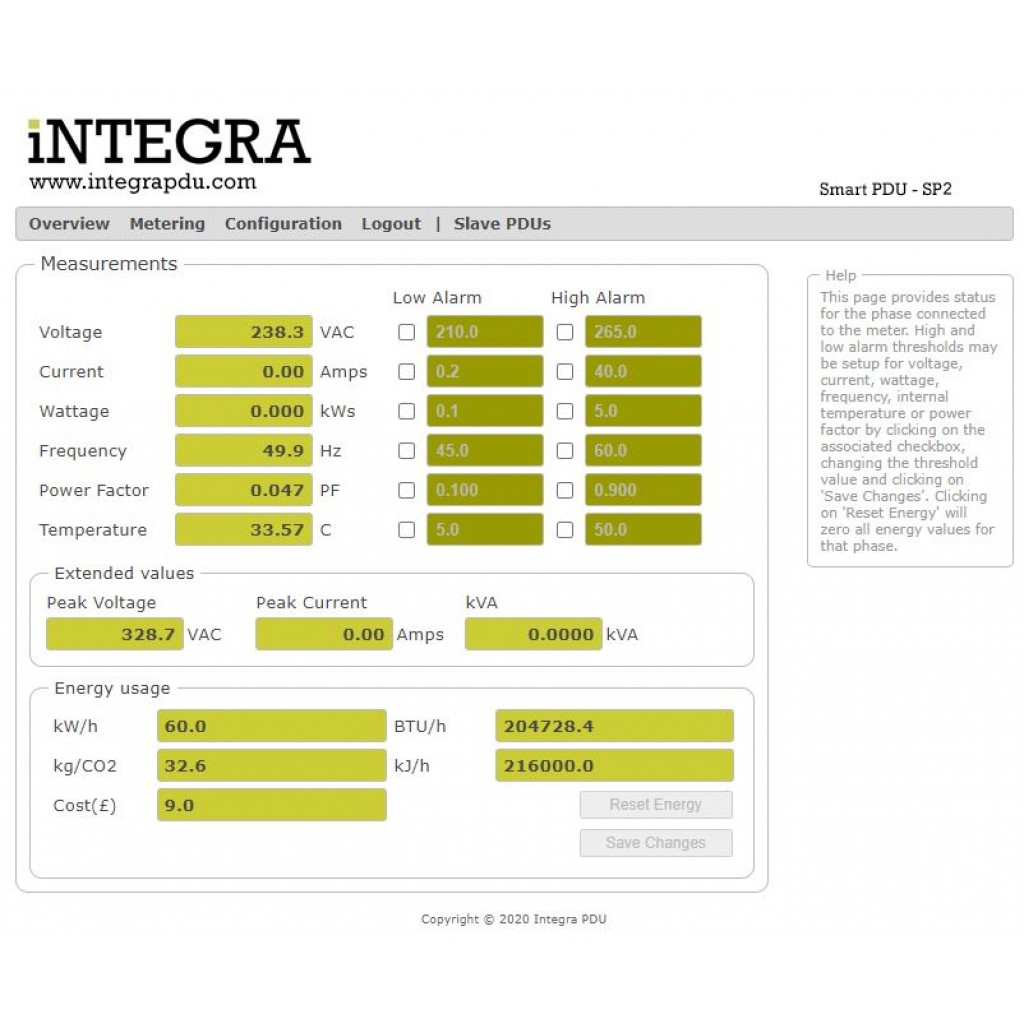

Integra PDU Inline SP2 overall monitored measurement allowing min/max level thresholds to be set for:

RMS Volts, RMS Amps, Kilowatts, Frequency, Power Factor, and Internal Temperature.

Additional Metrics include:

Peak Volts, Peak Amps, kVA.

Cumulative (Resettable) Values include:

kWh, Kg/CO2, Energy Cost, kJ/H, BTU/h.
