The Draytek Vigor 167 Is An ADSL2 / VDSL2 35b Modem That Is Perfect To Connect Your Draytek Vigor Router And Firewall (Or Any Other Router) To Your DSL Line.
- VDSL2 (Superfast Fibre FTTC) & ADSL2+ to Ethernet Modem
- Bridges DSL To Your Router Or Firewall
- Delivers Download Speeds Up To 300Mbps

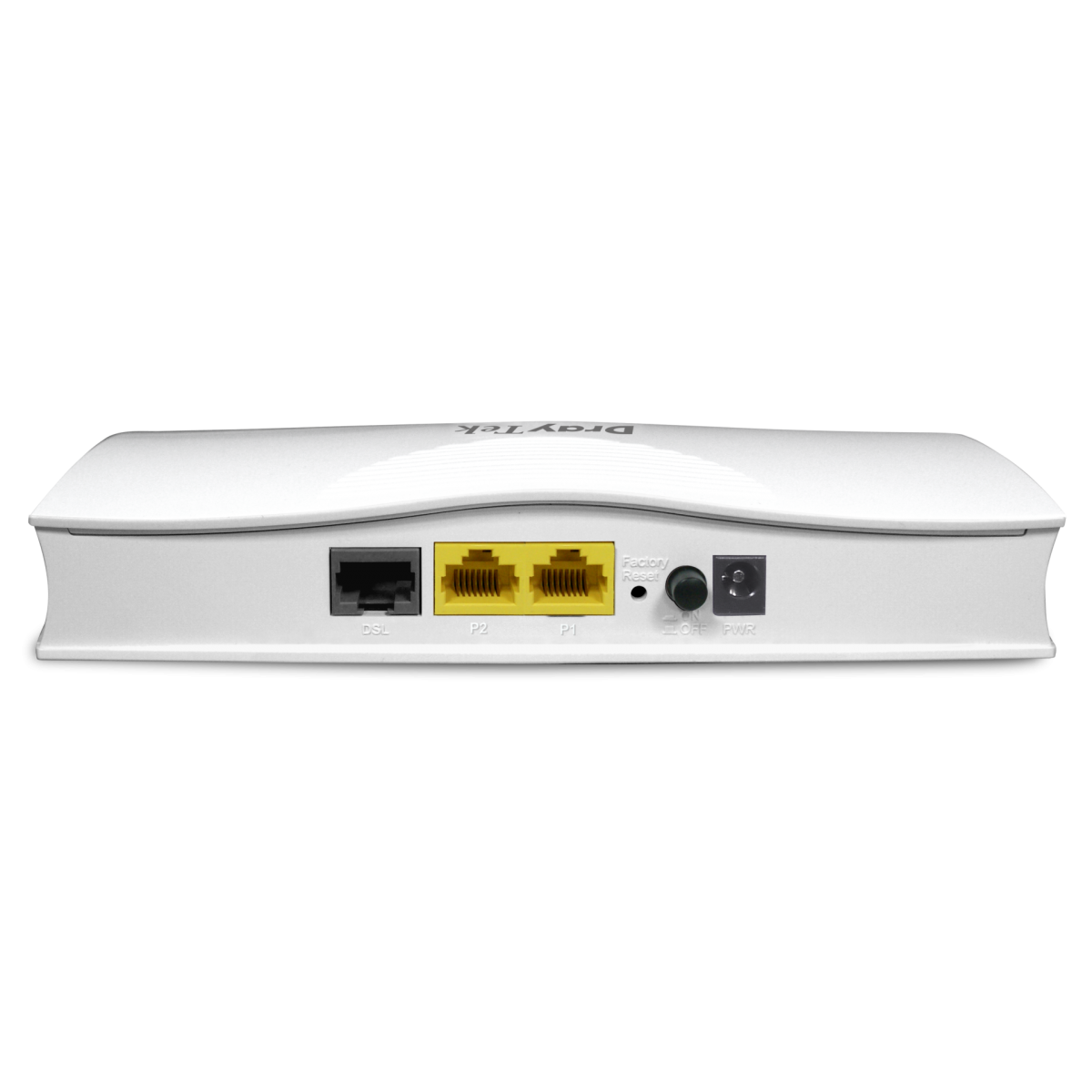

- Equipped with 1x RJ-11 Port and 2x Gigabit LAN Ports
- Pre-Configured To Work With Most UK ISPs Out Of The Box
- IPv6 & IPv4 Compatible
- Compatible With IPTV & ISP Video On Demand Services Such As Sky Q & YouView
- Wall Or Shelf Mountable - Comes With Screw Fixings
Interface | |
| WAN Port | 1x RJ-11 for VDSL2 35b/ADSL2+ |
| LAN Port | 2x Gigabit Ethernet RJ-45 |
Performance | |
| Max. VDSL Speed | 300 Mbps |
| Max. ADSL Speed | 20 Mbps |
| NAT Sessions | 10,000 |
DSL | |
| VDSL Standards | ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b(not G.fast) |
| VDSL Band Plan | 997, 998 |
| ADSL Standards | ANSI T1.413, ITU-T G.992.1(G.dmt) |
| ADSL2 Standards | ITU-T G.992.3, G.992.3 Annex M/J |
| ADSL2+ Standards | ITU-T G.992.5, G.992.5 Annex M/J |
Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| Virtual WAN | Yes |
| PPPoE Pass-Through | Yes |
| MPoA Bridge | Yes |
| Dynamic DNS | Yes |
Networking | |
| DHCP Server | Custom DHCP options, MAC Binding |
| Routing | IPv4 Static Routing, RIP v1/v2 |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping |
NAT | |
| NAT | Port Redirection, Open Ports, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP |
| VPN Pass-Through | PPTP, L2TP, IPsec |
Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, TR-069 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Syslog | Yes |
| Managed by VigorACS 3 | Yes |
| Broadcast DSL Info to LAN | Yes |
Physical | |
| Power Supply | DC 12V @ 0.4A |
| Max. Power Consumption | 4.4 watts |
| Dimension | 181mm x 125mm x 40mm |
| Weight | 270 g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
Notes :
All specifications are subject to change without notice.
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
