Boost Productivity for Small Businesses and Remote Workers
Unleash the power of your internet with the DrayTek Vigor 2927ax. This router is built for businesses that need a reliable and secure network solution.
Dual-WAN technology ensures you never miss a beat, even if your internet connection goes down. With gigabit WAN throughput, you can experience blazing-fast speeds for all your online activities.
Advanced security features like a firewall and content filtering keep your network safe from cyber threats. Plus, with built-in VPN capabilities, you can securely connect remote workers and branch offices.
Upgrade your Wi-Fi with the latest Wi-Fi 6 technology. The Vigor 2927ax delivers fast and efficient wireless networking for all your devices.
Invest in a network that can keep up with your business. The DrayTek Vigor 2927ax is the perfect solution for small businesses and home offices that demand performance and security.
Technical Specification (UK Hardware Spec.)

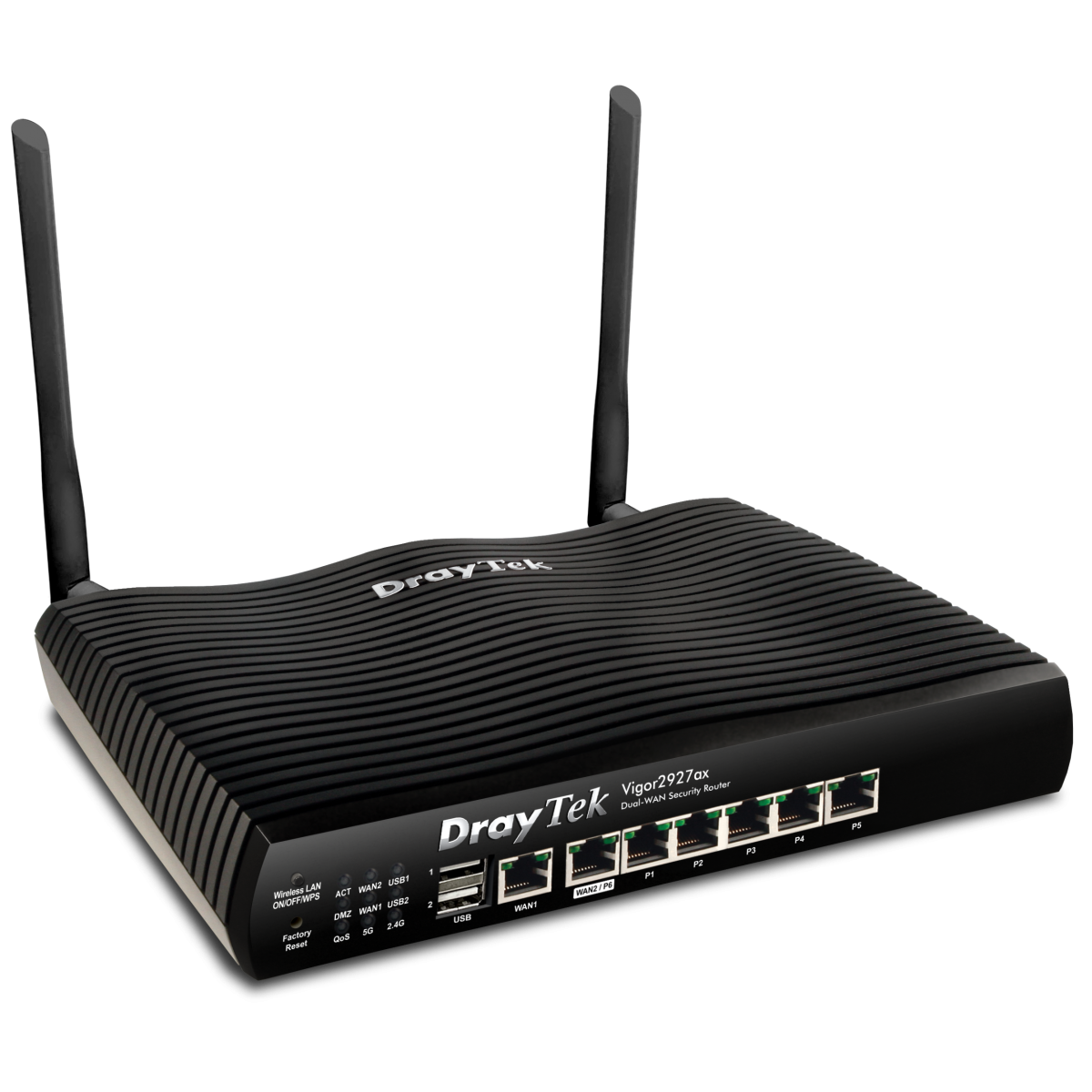

Physical Interfaces
- WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- WAN/LAN Switchable Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
- 2x Removable Wireless antennas
- 2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer
- Wireless On / Off / WPS button
- Recessed Factory Reset button
Antenna Specifications
- Wireless LAN Antennas:
- 2x External Dipole
- 5GHz Gain: 4.5 dBi
- 2.4GHz Gain: 5 dBi
- RP-SMA fitting antenna connectors
Performance
- NAT Performance:
- 950 Mb/s NAT Throughput for Single WAN with Hardware Acceleration
- 1.8Gb/s Total NAT Throughput for Dual WAN with Hardware Acceleration
- 800 Mb/s NAT Throughput per WAN
- 60,000 NAT Sessions
- 8000 Hardware Accelerated NAT Sessions
- VPN Performance:
- 300 Mb/s IPsec (AES256) VPN Performance
- 800 Mb/s Hardware Accelerated IPsec VPN Performance - New!
- 120 Mb/s SSL VPN Performance
- Max. 50 Concurrent VPN Tunnels
- Max. 25 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces
- WAN1: Gigabit Ethernet
- WAN2: Gigabit Ethernet
- WAN3: 2.4GHz Wireless WAN - Not supported on AX variant
- WAN4: 5GHz Wireless WAN - Not supported on AX variant
- WAN5: 4G/LTE USB Modem (not included)
- WAN6: 4G/LTE USB Modem (not included)
Internet Connection
- Load Balancing: IP-based, Session-based
- Hardware Acceleration
- 802.1p/q Multi-VLAN Tagging
- Multi-VLAN/PVC
- 2.4GHz & 5GHz Simultaneous Wireless WAN
- WAN Active on Demand: Link Failure, Traffic Threshold
- Connection Detection: PPP, ARP Detect, Ping Detect
- WAN Data Budget
- Dynamic DNS
- DrayDDNS – with automated LetsEncrypt Certificates
- Full Feature-set Hardware Acceleration:
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
- IPv4 Connection Types: PPPoE, DHCP, Static IP, PPTP/L2TP
- IPv6 Connection Types:
- Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU
Wireless Features
- AX3000 Wi-Fi 6 Wireless
- 802.11ax 2x2 wireless access point
- Compatible with 802.11a/b/g/n/ac wireless
- Dual-band (2.4/5Ghz) simultaneous wireless
- Up to 2400Mbps PHY rate at 160MHz with 5GHz
- Up to 574Mbps PHY rate at 40MHz with 2.4GHz
- Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
- OFDMA
- MU-MIMO
- Tx Beamforming
- 1024-QAM
- Up to 4 SSIDs per radio band
- Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
- Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
- Bandwidth Management (Per Station / Per SSID)
- WMM (Wireless MultiMedia)
- WPS - WiFi Protected Setup
- Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
- EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
- Wireless Security:
- WPA2
- WPA3 – New!
- Pre-Shared Key authentication
- Enterprise 802.1x authentication
- WEP/WPA for Legacy Clients
- Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
- IP-based or User-based Firewall Policy
- User-based Time Quota
- DoS Attack Defence
- Spoofing Defence
- Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
- NAT Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- UPnP
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
- 802.1q Tag-based, Port-based VLAN
- Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
- Up to 16 VLANs
- DMZ Port
- DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 1022 addresses for LANs 1-3
- DHCP Pool Count up to 253 addresses for LANs 4-8
- DHCP Relay per LAN
- LAN IP Alias
- Wired 802.1x Port Authentication
- Port Mirroring
- Local DNS Server
- Conditional DNS Forwarding
- Hotspot Web Portal
- Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
- Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
- High Availability: Active-Standby, Hot-Standby
- DNS Security (DNSSEC)
- Local RADIUS server
- SMB File Sharing (Requires external storage)
- Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
- Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN
- Up to 50 active VPN tunnels - including up to 25 SSL VPN or OpenVPN Tunnels
- Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New!
- LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client&
