Locking IEC PDU C19 Sockets - Horizontal 3 Phase Blade Server PDU

Part: W062BU0

Horizontally Mounted 3 Phase Power Distribution Unit To Deliver High Power To Your Cabinet.

  • Horizontally Mounted Blade PDU
  • High Performance L-Series Low Profile Breakers

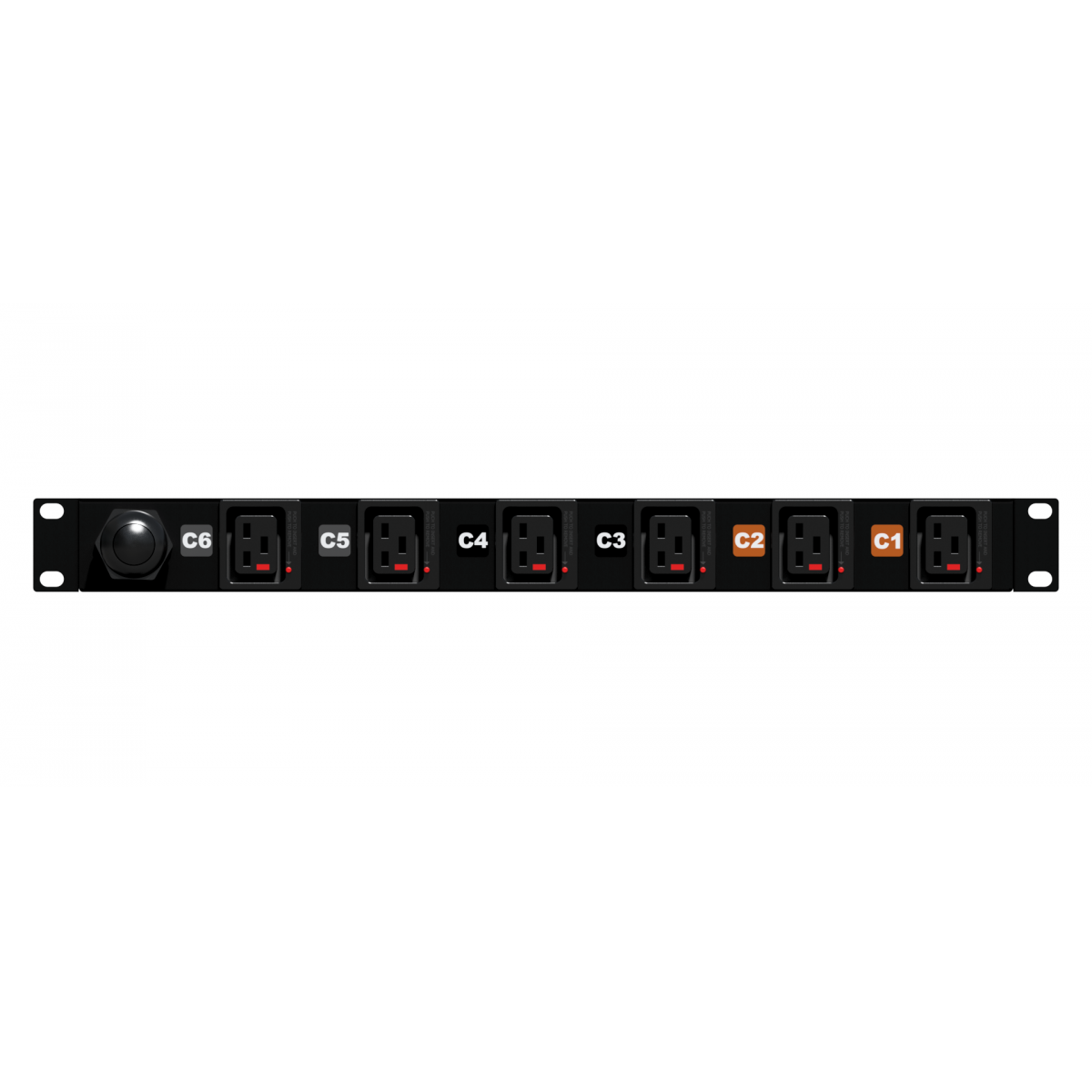

  • Locking IEC C19 Sockets To Prevent Accidental Disconnection
  • 3 Phase Power Manufactured In The UK
  • Toolless & Standard End Fixings
  • 3m Cable To 415V Three Phase 5 Pin IEC 60309 32A Plug (Contact For Bespoke Lengths)

Please enter a valid email address

  • from £448.61
  • Incl. VAT: £538.33

0 reviews / Write a review

High quality 3 phase PDUs manufactured in the UK by Integra PDU.  Black RAL9005 textured powder coat finish, bespoke colours upon request. 19" Rack-mountable High Density 1U Blade Server PDU with 6mm H07RN-F cord to splashproof IP44 3-Phase 32A plug. BS EN62368 CE marked. Lifetime warranty.



  • Steel Chassis Construction
  • Black RAL 9005 Fine Texture Powder Coat Finish
  • M5 External Earth Stud c/w Anti Shake Washer & Nut
  • Red Illuminated 16A Double Pole Switch c/w Switch Cover (Where Applicable)
  • Operating Voltage 250V 50Hz AC max

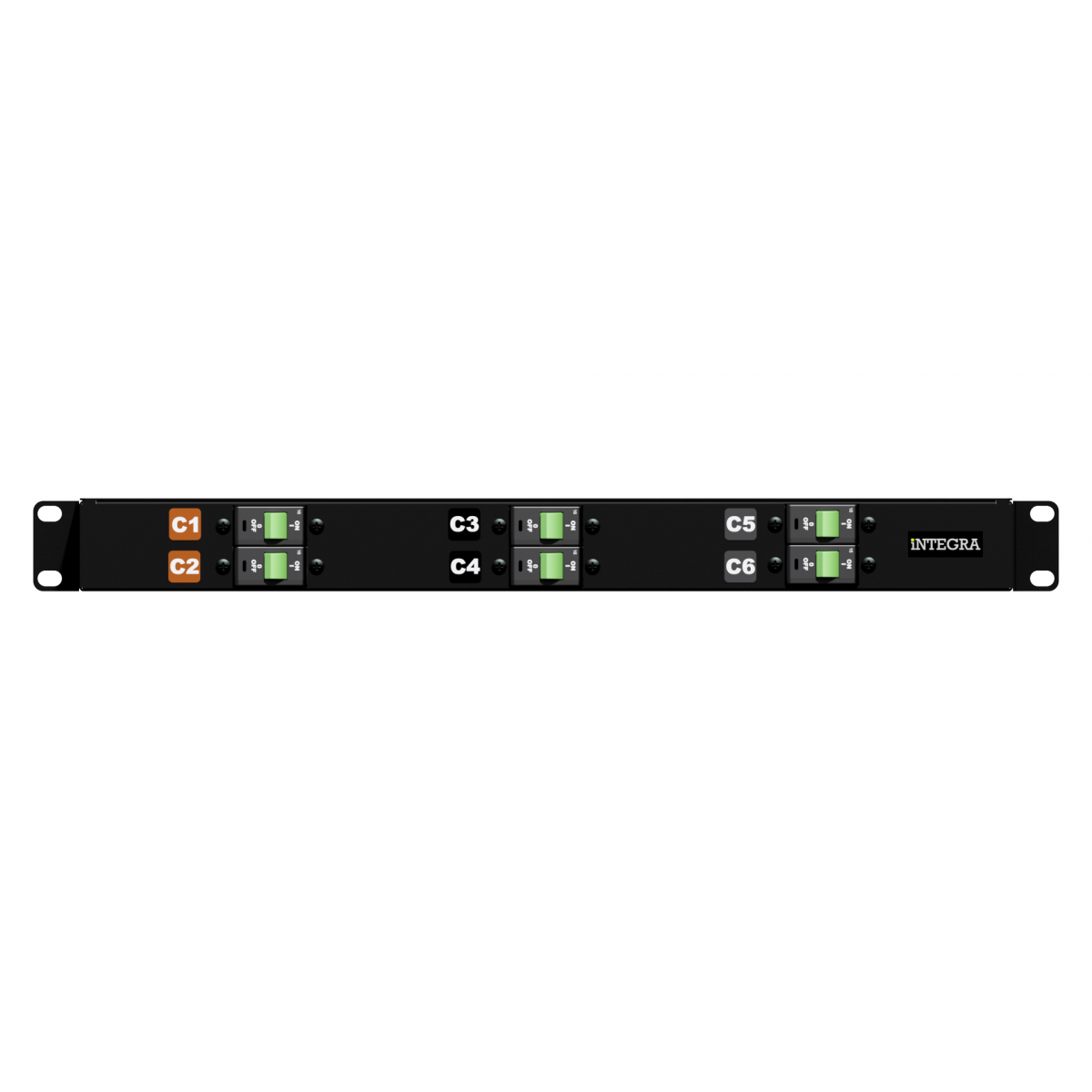

  • 2 x 16 Amp Hydraulic Magnetic Circuit Breakers On 32Amp IEC C13 Units (MCB/RCBO/RCD Circuit Protection By Request)
  • EN IEC 62368 1:2020+A11:2020
  • UKCA CE RoHS
Product Information
Horizontal 3-Phase
