TP-Link EAP615 Wall Plate AX1800 Wi-Fi 6 Access Point

Part: H010670
  • Brand: TP-Link
  • Availability: In Stock

Super Fast WiFi6 Dual Band 802.11ax Wall Mounted Access Point

  • Simultaneous 574Mbps 2.4Ghz & 1201Mbps 5Ghz Totals 1775Mbps WiFi6 Speeds
  • 4 Gigabit Ethernet Access Points - 1 Uplink & 3 Downlink, One Of Which Also Supports PoE Passthrough
  • Powered By 802.3af/at PoE Power Over Ethernet
  • This Access Point Has A Sleek Low Profile Inconspicuous Design To Blend In With Your Wall
  • Easy Installation With Supplied Wall Mounting Plate And Screws
  • 2 Dual Band Antennas In A Compact Unit Size Of 143 x 86 x 20mm

Please enter a valid email address

  • from £78.70
  • Incl. VAT: £94.44

0 reviews / Write a review

AX1800 Wall Plate WiFi 6 Access Point

  • Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
  • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Centralized Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
HARDWARE FEATURES
Interface• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security LockYes
ButtonReset
Power Supply802.3af/at PoE
Power Consumption• EU: 10W (802.3at PoE, PoE Out off)
• US: 11.5W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H )143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
MountingWall Plate Mounting
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security• Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power• CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)

• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
Omada AppYes
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
CertificationCE, FCC, RoHS

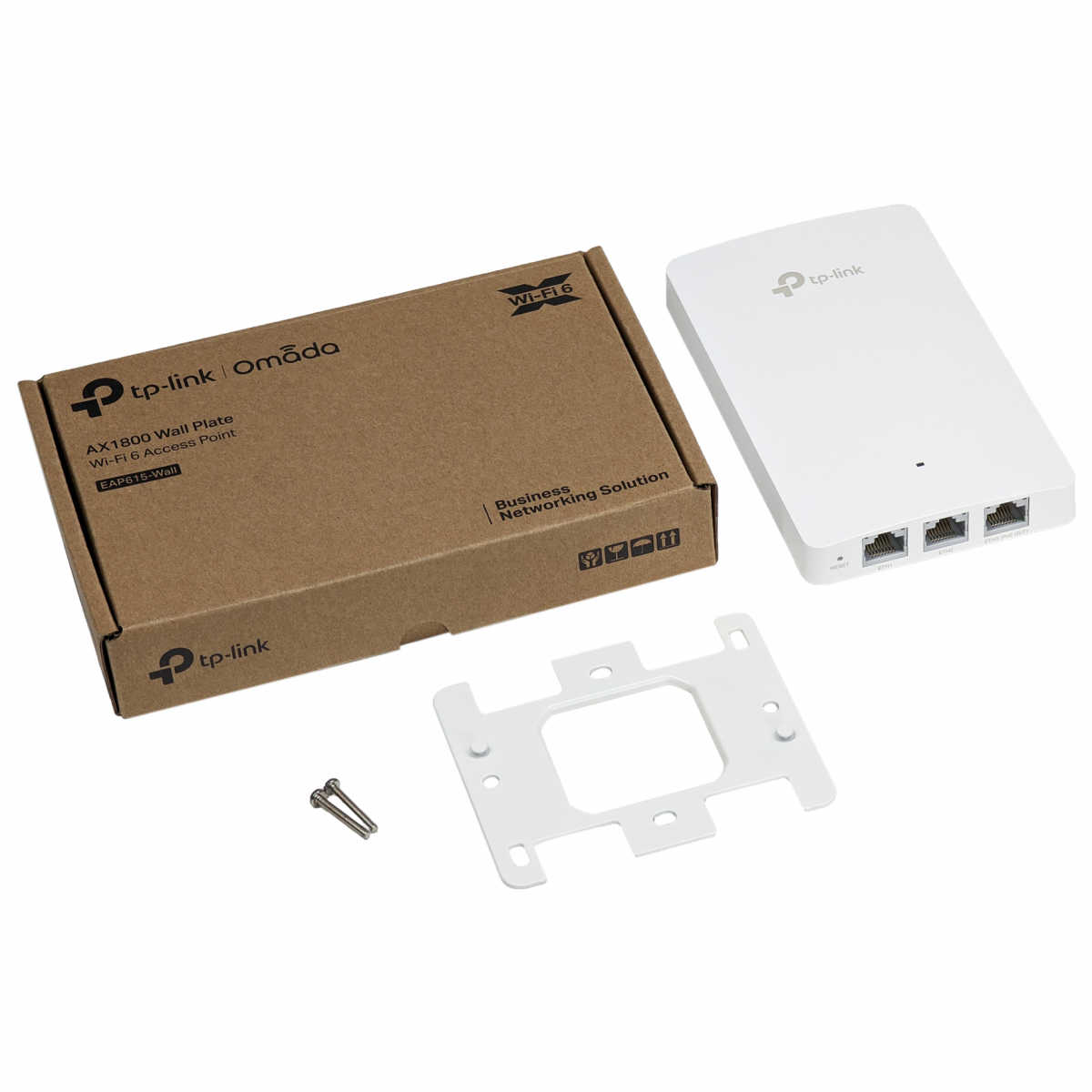

Package Contents• AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
