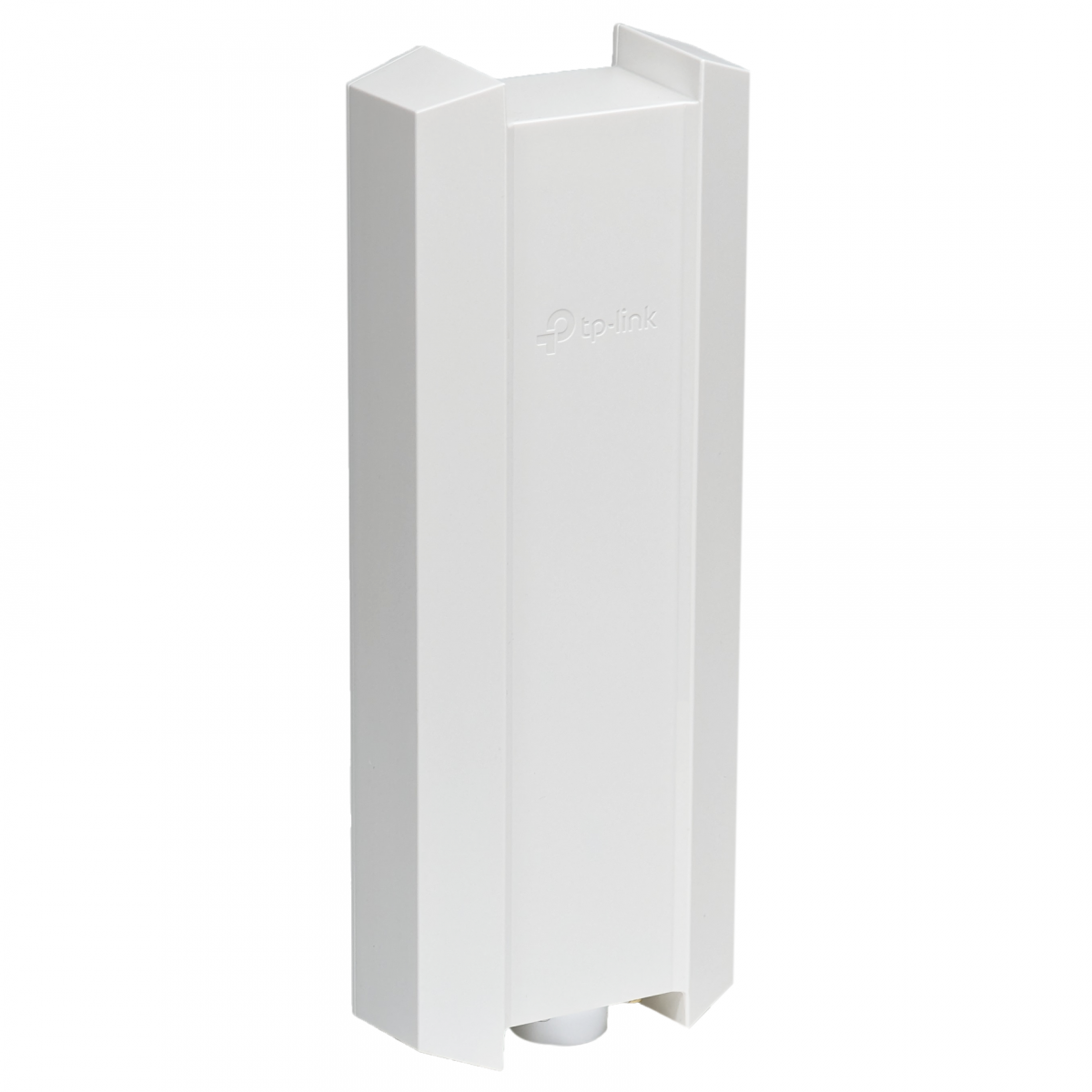

TP-Link EAP610 Outdoor AX1800 Wi-Fi 6 Access Point IP67

Part: H010680

Brand: TP-Link
Availability: In Stock

Get WiFi 6 Performance Outside With This TP-Link AX1800 Wireless Outdoor / Indoor Access Point

IP67 Waterproof / Dustproof
Long Range Coverage
Up To 1201Mbps On 5GHz + 574 Mbps On 2.4GHz
IEEE 802.11ax/ac/n/g/b/a
MESH Technology
Comes With Passive PoE Injector Power Supply
Wall & Pole Mounting Kits Included
Centralised Cloud Management

Model

from £122.58
Incl. VAT: £147.10

Superior WiFi 6 Speeds: The EAP610 Outdoor delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology so you can enjoy faster speeds on more devices, with less lag
Higher Network Efficiency: OFDMA and MU-MIMO technology to efficiently share bandwidth across your devices with less lag
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure, providing long range coverage across your home or office.
Omada Mesh Technology: Enables wireless connectivity between multiple access points for extended range and flexible deployment via use of Omada SDN controllers
Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points via use of Omada SDN controllers
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management, making it easier to configure your network, update and troubleshoot

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	• 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Weatherproof Enclosure	IP67

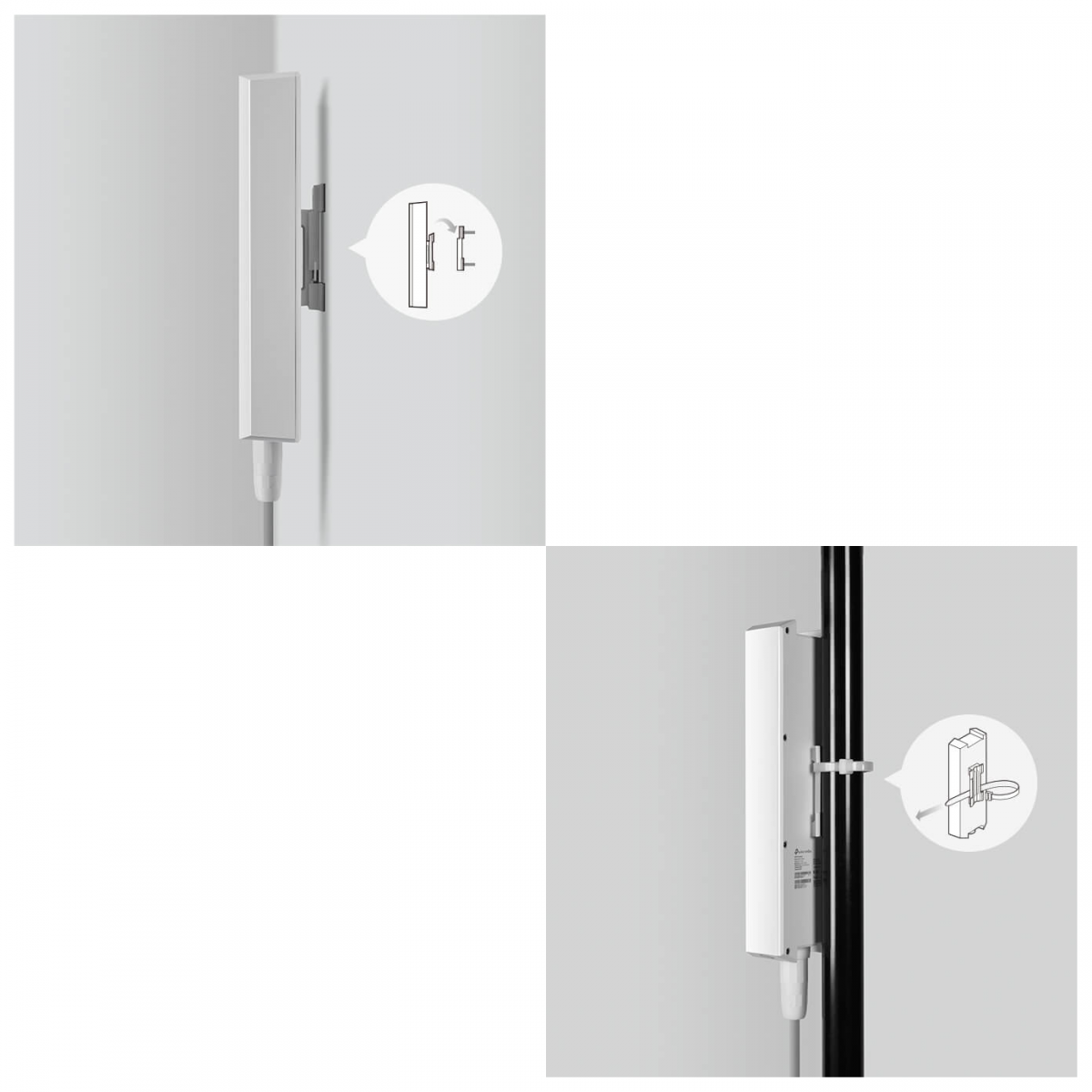

Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz
Signal Rate	• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power	• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • Omada Mesh • Seamless Roaming • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication** • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS

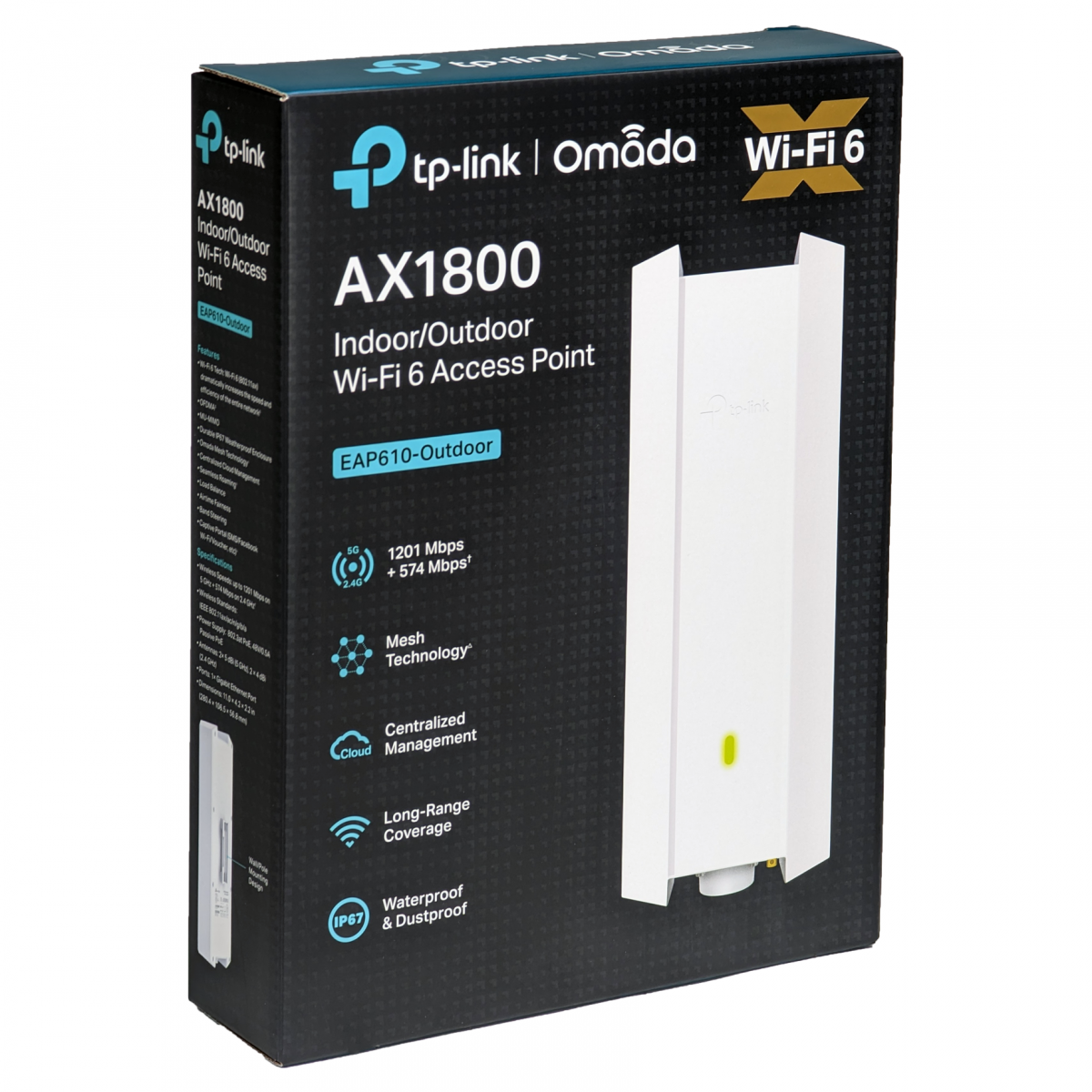

Package Contents	• Access Point EAP610-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Kits • Waterproof Antenna • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

**Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.
